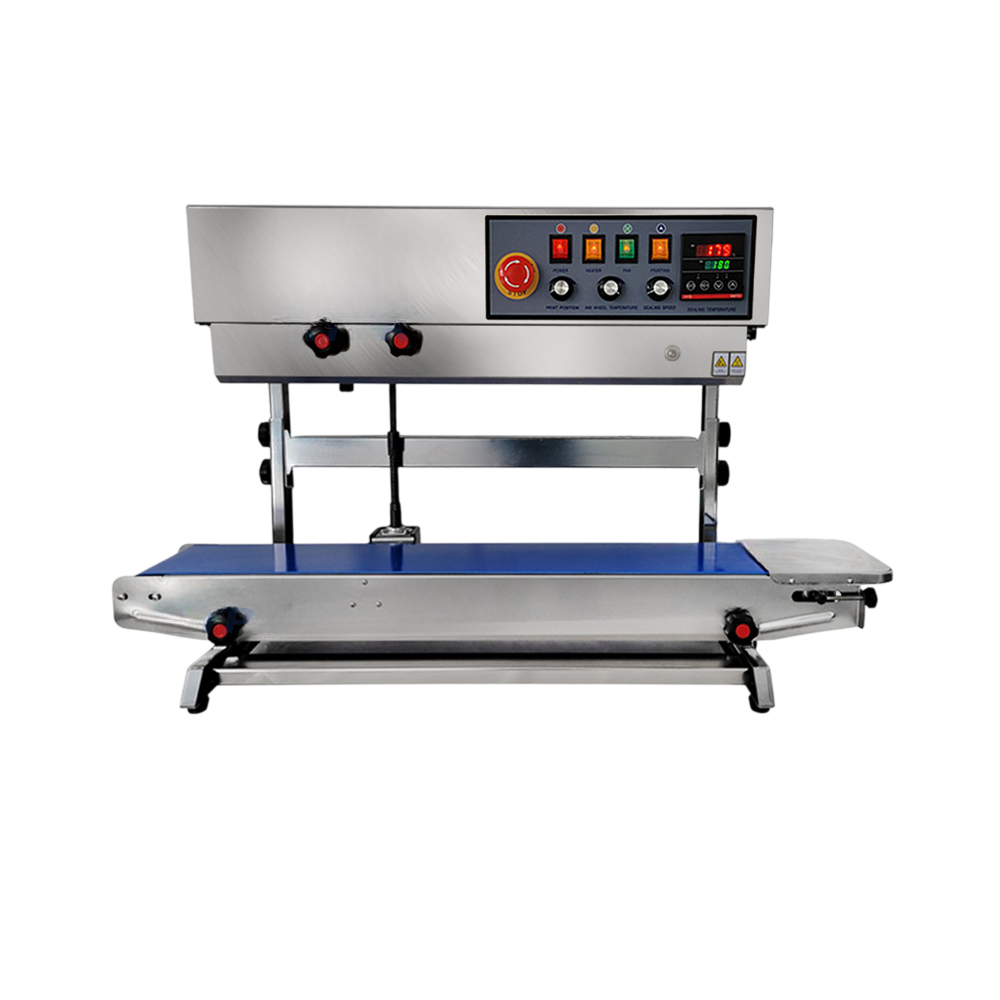

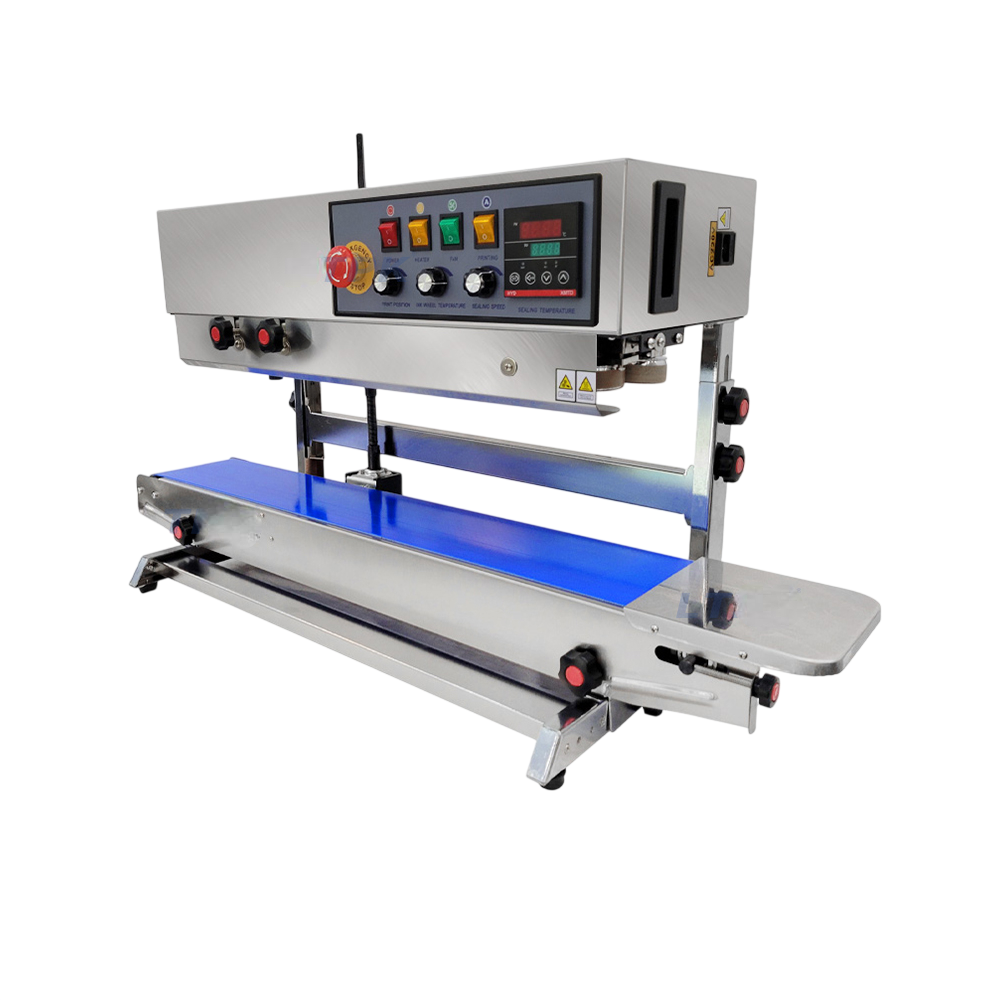

Vertical Band Sealer

The Vertical Band Sealer is a high-efficiency continuous sealing machine designed for sealing plastic films and packaging bags in vertical position applications. It is especially suitable for products that require upright packaging such as powders, sugar, salt, grains, tea, chemicals, and liquid-based or semi-liquid materials. This machine provides strong, consistent, and visually clean sealing, making it ideal for food, chemical, agricultural, and industrial packaging environments.

Built with an electronic constant temperature control system and stepless speed adjustment, this machine ensures precise sealing performance across different film thicknesses and materials. The vertical design allows packaging of products that need to remain upright during sealing, ensuring safety and preventing spillage during operation.

The machine supports continuous operation with a conveyor system designed for smooth and stable product transport. It is equipped with a digital display control panel that allows operators to easily adjust temperature and conveyor speed according to production requirements. The integrated solid ink wheel printing system enables batch coding and date marking directly during the sealing process, improving efficiency and reducing production steps.

Its pure copper heating and cooling block ensures uniform heat distribution for strong and reliable seals, while the stainless steel reinforced structure enhances durability and stability during long-term use. The adjustable sealing height allows compatibility with a wide range of packaging sizes, making it highly versatile for different production lines.

Designed for industrial reliability, the Vertical Band Sealer combines speed, precision, and durability in one compact unit, helping businesses improve productivity while maintaining professional packaging quality.

Key Features & Specifications:

• Vertical continuous band sealing machine
• Suitable for powders, granules, liquids, and semi-liquids
• Ideal for food, chemical, agricultural, and packaging industries
• Electronic constant temperature control system
• Stepless adjustable conveyor speed
• Integrated solid ink wheel date coding and printing function

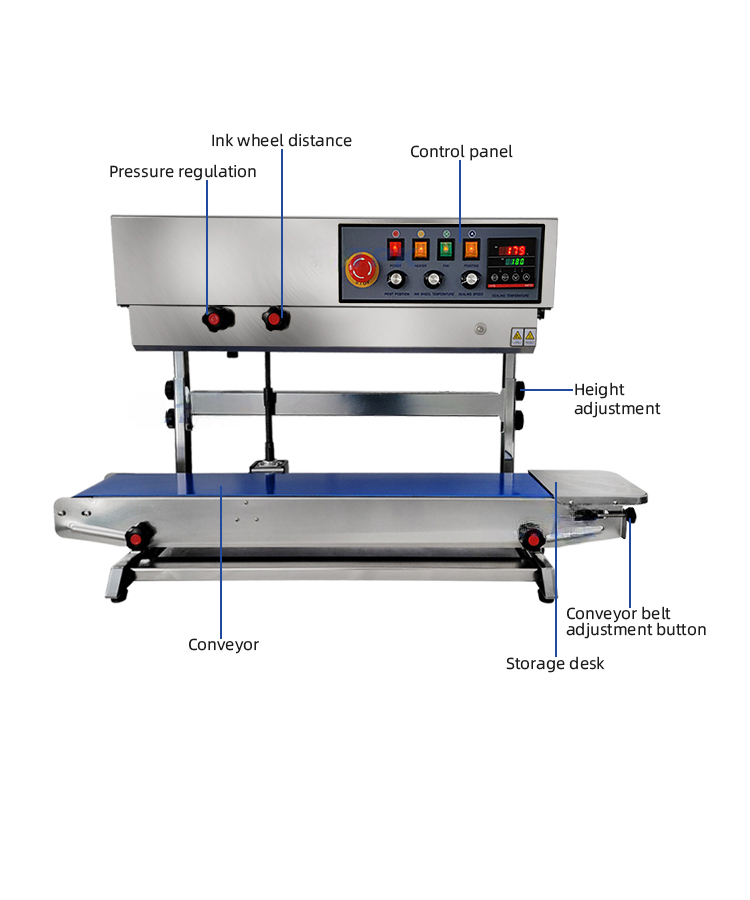

• Digital temperature and speed display control panel
• Pure copper heating and cooling block for uniform sealing
• Adjustable sealing height for different bag sizes
• Stainless steel reinforced structure for durability
• Suitable for plastic, aluminum foil, composite, kraft paper, and shrink films
• Sealing speed: 0–12 m/min
• Sealing width: 6–12 mm
• Temperature range: 0–300°C
• Conveyor load capacity: up to 5 kg
• Power: 600W
• Voltage: 220V / 110V
• Machine size: 100 × 44 × 39 cm
• Machine weight: approximately 34 kg
