Solar Food Dryer

The Solar Food Dryer is a modern, energy-efficient drying solution designed for farmers, food processors, and agricultural businesses seeking reliable and cost-effective performance. Combining solar energy with advanced heat pump technology, this system delivers consistent drying results while significantly reducing electricity consumption and operating costs.

This drying unit is ideal for a wide range of products, including fruits such as avocados, dates, apricots, and figs, as well as vegetables, herbs, and spices. Its intelligent drying process ensures that products retain their natural colour, flavour, and nutritional value. The integrated heat pump captures and converts low-temperature ambient heat into high-temperature air, while solar panels supplement energy input—creating a sustainable and eco-friendly drying system.

Equipped with a user-friendly touchscreen and PLC control system, the dryer offers precise temperature and humidity management. This allows operators to customize drying conditions for different materials, ensuring optimal results every time. The fully automated design reduces manual intervention, making operation simple and efficient even for first-time users.

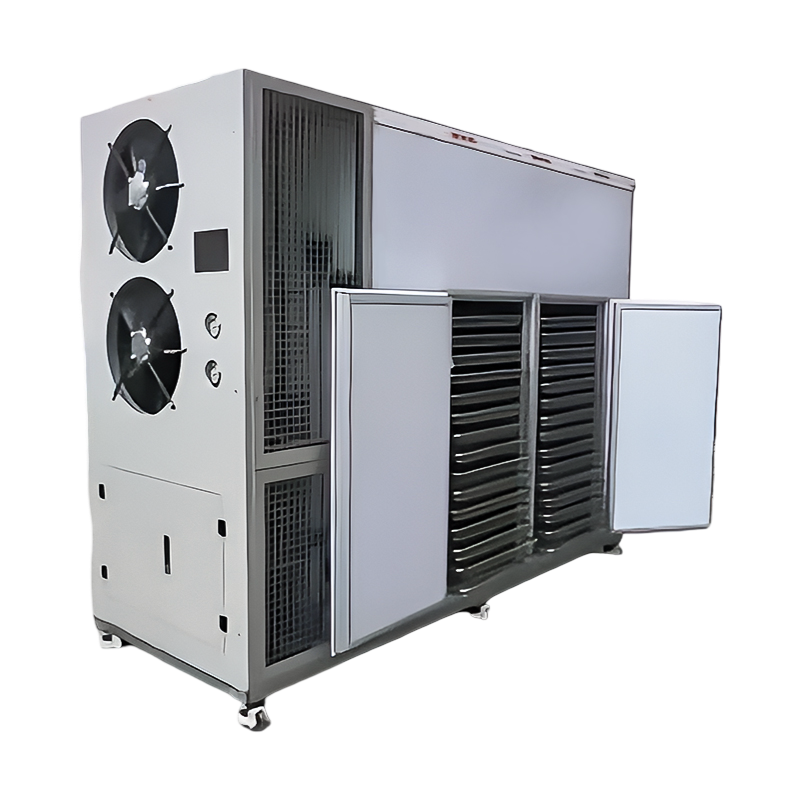

The spacious drying chamber includes multiple stainless steel trays, enabling high-capacity batch processing. Its durable construction ensures long service life with minimal maintenance requirements. Additionally, the portable structure allows easy relocation, making it suitable for farms and various processing environments.

With its low noise operation, heat recovery system, and reduced carbon emissions, this dryer is a smart investment for businesses aiming to improve productivity while supporting sustainable practices. Whether you are scaling up production or improving product quality, this solution offers dependable performance and long-term value.

 Key Features & Specifications:

• Drying capacity: 300–500 kg per batch
• Temperature range: Adjustable from 30°C to 75°C
• Heat source: Solar + heat pump + electric backup
• Heat pump power: 3 HP
• Total power consumption: 3.7 kW
• Dehumidification capacity: 12 kg/hour
• Chamber dimensions: 2800 × 1100 × 2200 mm
• Installation size: 2900 × 1300 × 2200 mm
• Number of trays: 60 stainless steel trays
• Tray size: 640 × 640 × 25 mm

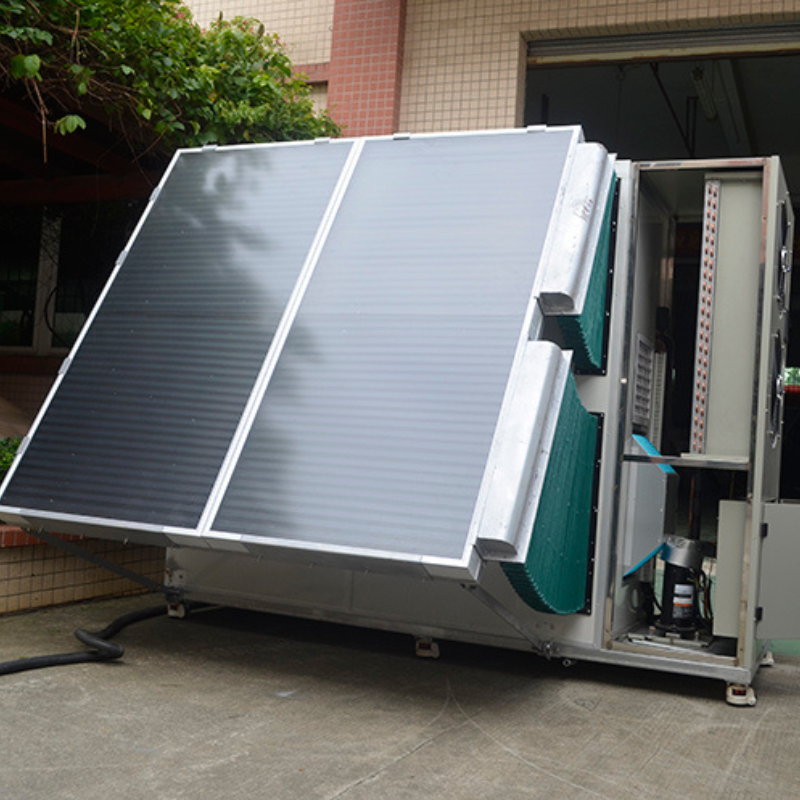

• Solar panel area: 4 m² (2 panels)
• Control system: 10-inch touchscreen with PLC
• Noise level: 55 dB (low noise operation)
• Operating temperature range: -5°C to 45°C
• Insulation thickness: 50 mm for heat retention
• Material: Food-grade stainless steel (304/316)
• Portable and durable structure for flexible use
