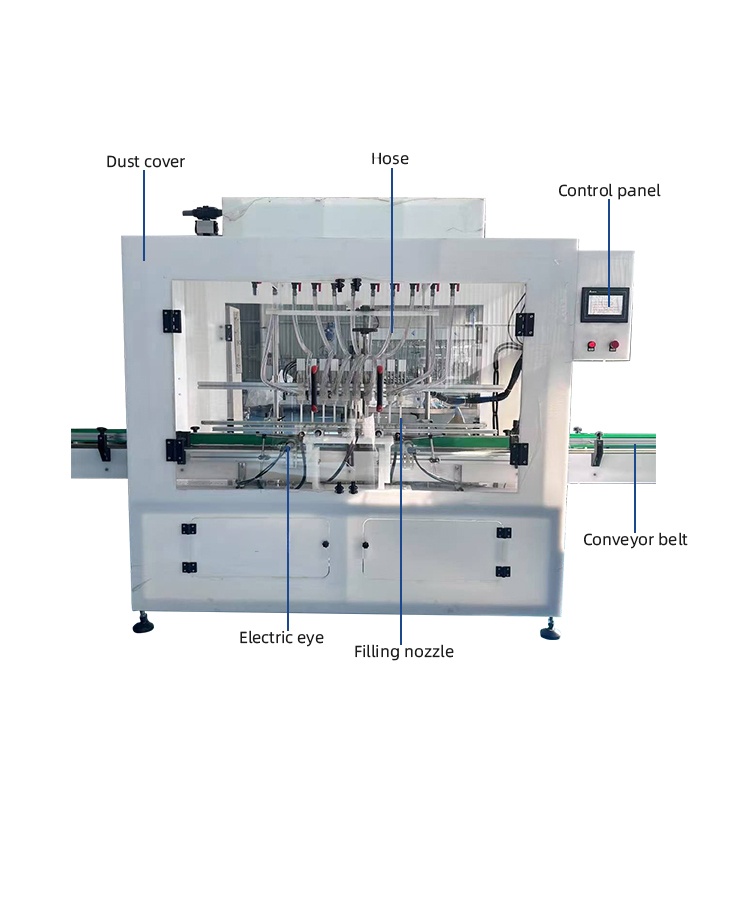

Anti Corrosion Liquid Filler

The Anti Corrosion Liquid Filler is a specialized filling solution engineered for handling aggressive, corrosive liquids and sensitive cosmetic products that cannot come into contact with metal components. Designed with durability and safety in mind, this machine features a robust polypropylene (PP) structure combined with high-quality non-metallic liquid contact parts, ensuring long-term resistance to chemical damage and corrosion.

The liquid pathways are constructed using polytetrafluoroethylene materials, known for their excellent chemical resistance and non-reactive properties. This design ensures product purity while preventing contamination or degradation during the filling process. Additionally, all exposed external metal components, such as motors and cylinders, are securely enclosed within protective PP housings to shield them from corrosive fumes and extend the machine’s operational lifespan.

Equipped with a modern PLC control system and an intuitive touchscreen interface, the machine offers precise control over filling parameters. Operators can easily adjust settings to match different product requirements, ensuring consistent output and minimal error. With high filling accuracy and stable performance, it is suitable for industries such as chemicals, cleaning products, pharmaceuticals, and cosmetics.

The multi-head filling design significantly enhances productivity, allowing multiple containers to be filled simultaneously. Its adaptability to various bottle sizes and filling volumes makes it a versatile choice for manufacturers with diverse production needs. The system also supports customized nozzle sizes to ensure compatibility with different container types.

Whether used in small-scale production or industrial environments, this anti-corrosion filler provides a reliable, safe, and efficient solution for handling challenging liquids while maintaining high standards of quality and precision.

Key Features & Specifications:

• Non-metal construction for handling corrosive liquids
• Main frame made of durable polypropylene (PP)
• Liquid contact parts made of polytetrafluoroethylene
• External metal components protected in PP enclosures
• PLC control system with user-friendly touchscreen interface
• High filling accuracy: ±0.5%
• Multi-head filling system (10 heads, customizable)
• Filling speed: 10–30 bottles per minute (depending on volume)
• Filling range: 100ml to 3000ml
• Suitable bottle diameter: 30mm–120mm
• Suitable bottle height: 40mm–350mm
• Customizable nozzle size: 8mm–20mm
• Air pressure requirement: 0.4–0.7 MPa
• Voltage compatibility: 110V / 220V
• Power: 1500W
• Pipe material: PVC
