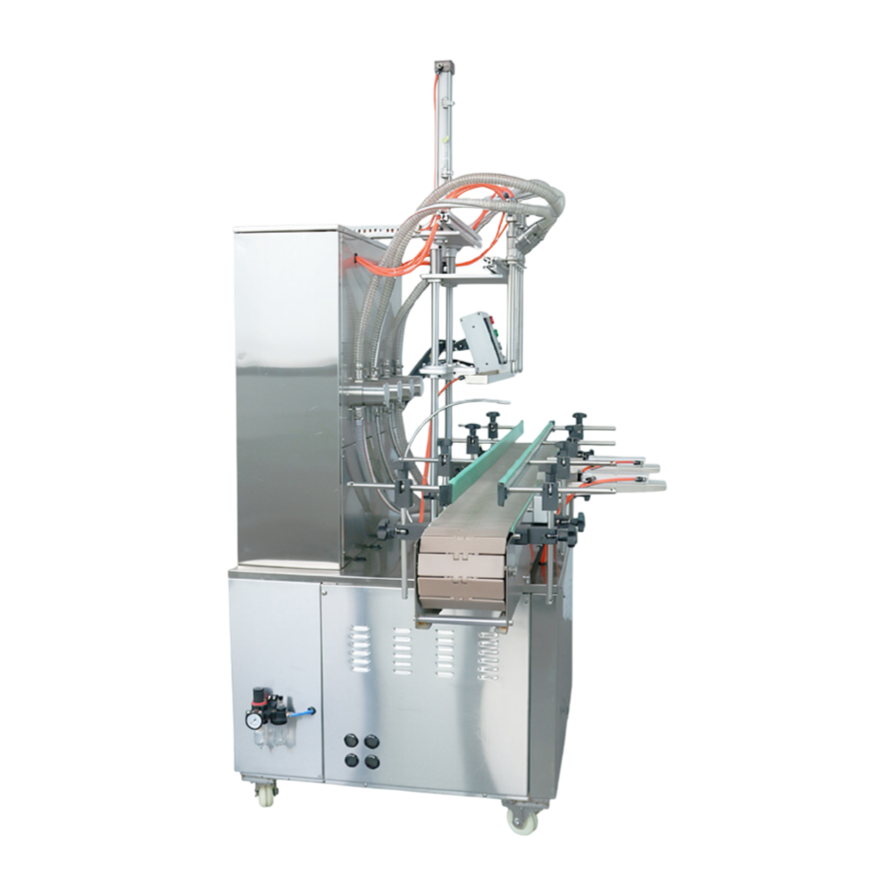

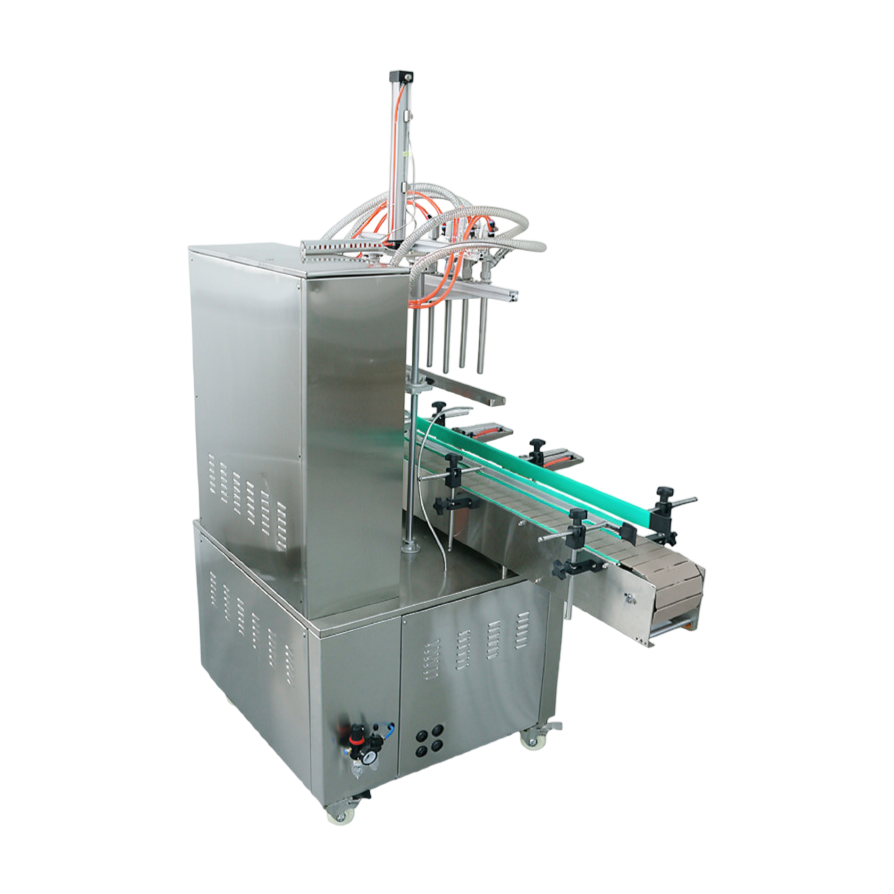

Automatic Magnetic Pump Filler

The Automatic Magnetic Pump Filler is a high-performance solution designed for efficient and precise liquid filling on production lines. Equipped with four independent filling heads, this machine combines advanced magnetic pump technology with durable cylinders to deliver excellent corrosion resistance and long-term reliability. Its robust construction ensures stable operation even when handling aggressive or sensitive liquids, making it ideal for chemicals, beverages, cosmetics, and pharmaceutical products.

Controlled via an intuitive PLC touch screen, the machine allows operators to set precise filling volumes, monitor real-time performance, and adjust operational parameters with ease. This digital control system ensures consistent and accurate fills, reduces human error, and enhances overall productivity. With filling accuracy of ±2 ml, the machine is capable of delivering precise doses for a wide range of container sizes, from small bottles to larger containers.

The magnetic pump system supports a high maximum flow rate of 88 liters per minute across four heads, allowing for fast and efficient production. The filling range is highly versatile, covering 20 ml to 30,000 ml, making it suitable for diverse industrial applications. Adjustable lifting height (10–50 cm) and a maximum suction distance of 5 meters provide flexibility for different container sizes and production setups.

This filler is designed to handle liquids at temperatures up to 90℃, ensuring safe operation across a variety of products. The 19 mm filling nozzles and hoses facilitate smooth, drip-free filling, while the compact yet sturdy frame allows for easy integration into assembly lines. Despite its robust performance, the machine is lightweight at 100 kg, making it relatively easy to move and install.

By combining precision, corrosion resistance, and operational efficiency, the Automatic Magnetic Pump Filler delivers reliable performance and high productivity, making it a key asset for modern production lines.

Key Features & Specifications:

• Four independent magnetic pump filling heads
• Excellent corrosion-resistant cylinders and pumps
• PLC touch screen control for precise operation
• Filling accuracy: ±2 ml
• Filling range: 20–30,000 ml
• Maximum flow rate: 88 L/min (four heads)
• Filling nozzle diameter: 19 mm
• Liquid temperature tolerance: <90℃
• Maximum suction distance: 5 meters
• Hose size: 19 × 24 mm
• Adjustable lifting height: 10–50 cm
• Voltage: 110V / 220V
• Power: 2200W
• Machine weight: 100 kg
• Machine dimensions: 180 × 80 × 190 cm
