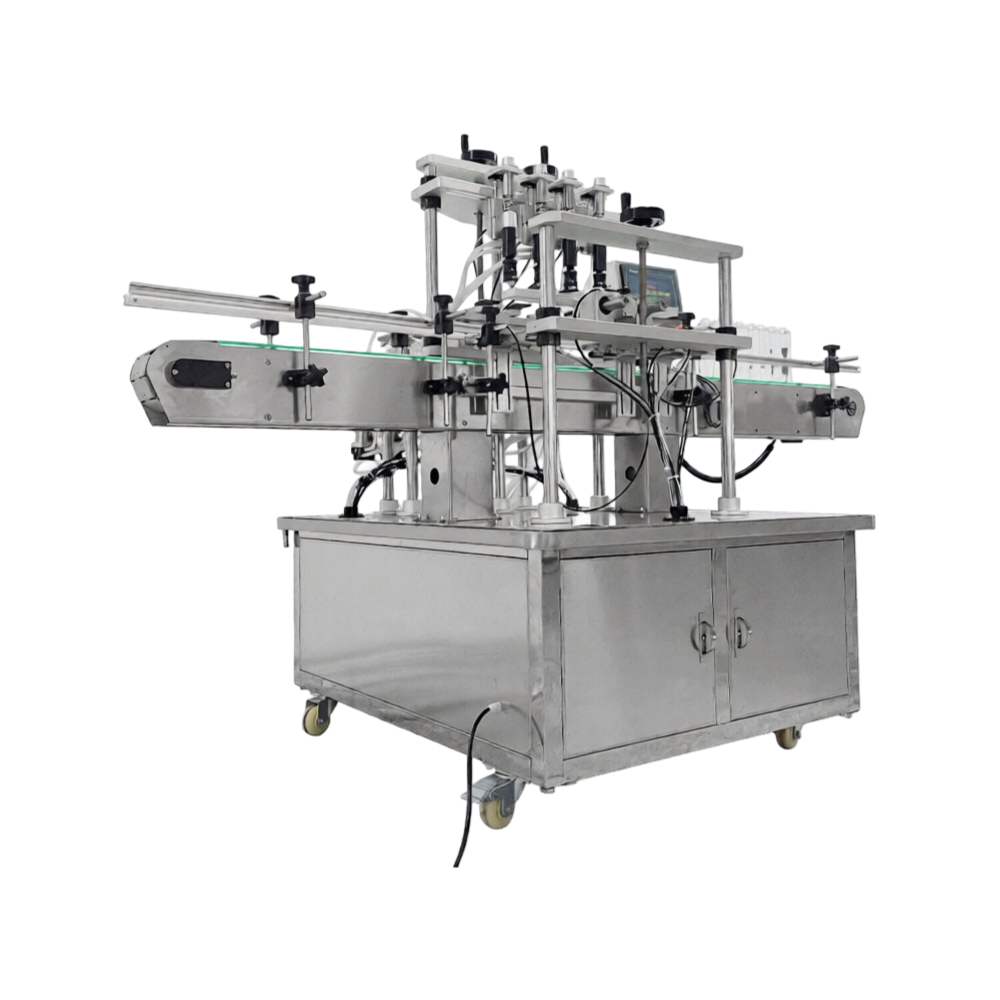

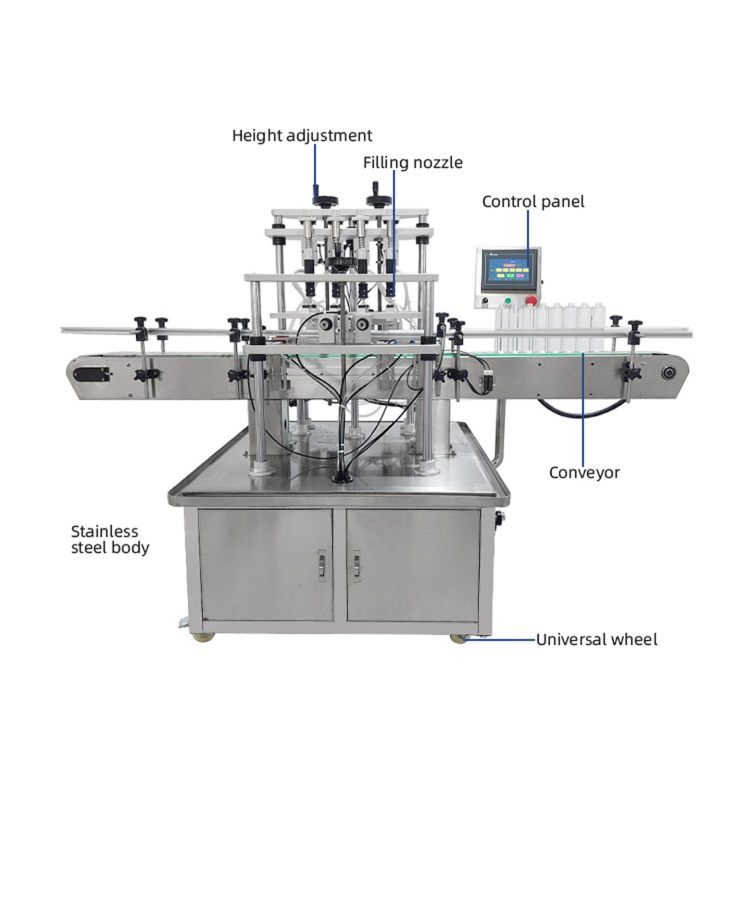

Automatic Vacuum Perfume Filler

The Automatic Vacuum Perfume Filler is a specialized solution designed for precise and efficient filling of perfume and other low-viscosity, particle-free liquids. Utilizing advanced negative pressure technology, this machine ensures consistent filling by maintaining a constant liquid level within each bottle. This method not only enhances accuracy but also delivers a premium, uniform appearance across all filled products.

One of the key advantages of this machine is its ability to minimize fragrance loss during the filling process. By operating under vacuum conditions, it effectively prevents the evaporation and spread of volatile aromas, making it particularly suitable for perfume production and other fragrance-sensitive liquids. This helps preserve product quality while maintaining a cleaner working environment.

Equipped with four filling heads, the machine offers increased productivity while maintaining precise control over each filling cycle. The adjustable liquid level feature allows operators to fine-tune the fill height according to specific packaging requirements, ensuring flexibility across different bottle designs.

Its compact and well-structured design makes it easy to integrate into existing production lines without occupying excessive space. The intuitive operation simplifies the filling process, reducing the need for extensive training and minimizing human error. Built with durability in mind, the machine provides reliable performance even under continuous operation.

Designed to accommodate a variety of bottle sizes and neck diameters, this filler is suitable for cosmetic, personal care, and fragrance manufacturing industries. With its combination of precision, efficiency, and product preservation capabilities, it is an ideal choice for businesses aiming to enhance both quality and productivity.

Key Features & Specifications:

• Negative pressure vacuum filling system
• Constant liquid level filling for uniform results
• Four filling heads for improved efficiency
• Filling speed: 20–40 bottles per minute
• Liquid level accuracy: ±1 mm
• Adjustable filling level from bottle mouth (<27 mm)
• Suitable for low-viscosity liquids (up to 20 Cps)
• Prevents fragrance evaporation and odor spread
• Bottle height compatibility: up to 250 mm
• Bottle opening size: φ4.5 mm – φ28 mm
• Air pressure requirement: 0.5–0.8 MPa
• Air pumping rate: 5.5 L/s
• Compact and user-friendly design
• Machine dimensions: approx. 1500 × 1150 × 1530 mm
• Approximate weight: 278 kg
