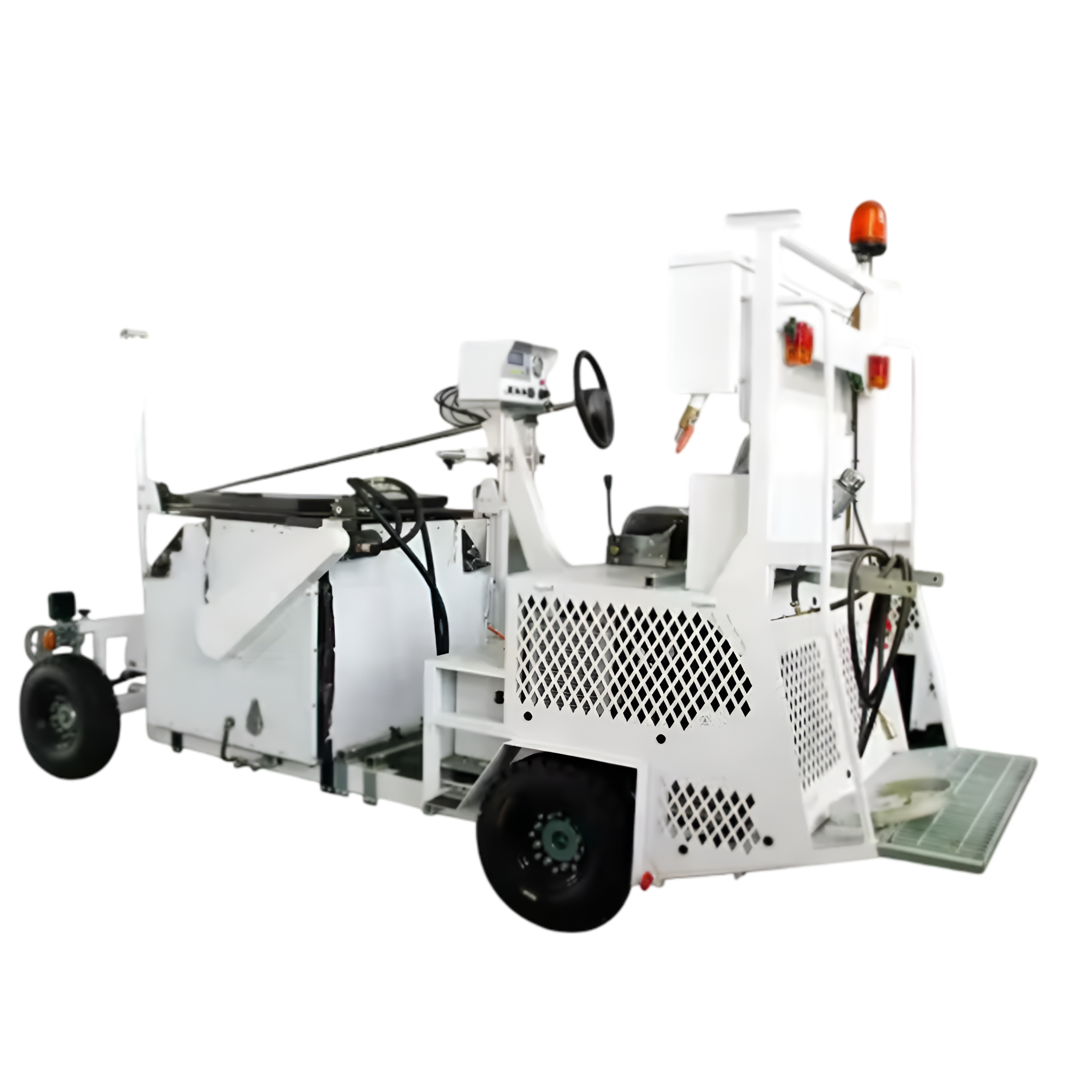

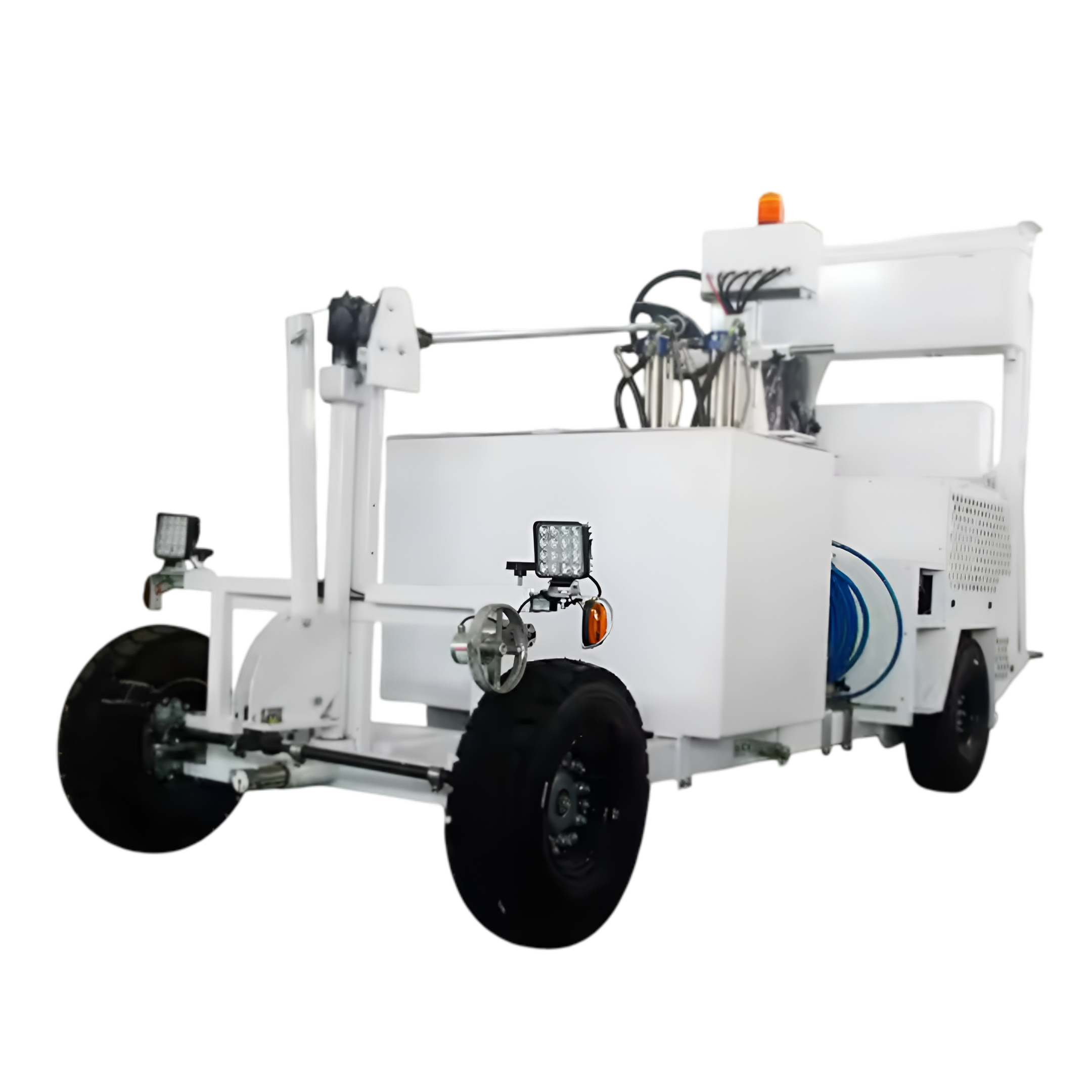

Heavy-Duty Road Marking Machine

The Heavy-Duty Road Marking Machine is engineered for high-efficiency road marking in commercial, municipal, and infrastructure environments. Built to handle demanding tasks with speed and accuracy, this industrial-grade machine delivers reliable performance for roadways, airports, parking lots, and urban infrastructure projects.

At its core is the trusted Honda GX690 25HP gasoline engine, powering a fully hydraulic drive system that supports both forward and reverse operation. With speeds reaching up to 22 km/h, operators can efficiently navigate long straightaways and tight curves without sacrificing control or precision.

This machine features two 150-liter oval-shaped paint tanks, each equipped with hydraulic agitators to ensure consistent paint mixing. The imported hydraulic plunger pump delivers a strong 16L/min flow rate, while the automatic reciprocating cylinder precisely controls paint application — resulting in clean, consistent lines even over long distances.

For flexibility, the machine supports adjustable line widths from 100mm to 900mm, and line thickness from 0.2mm to 0.4mm. It comes equipped with two pneumatic spray guns for primary use and one manual backup spray gun for added control when needed. A pneumatic glass bead dispenser with adjustable pressure ensures enhanced visibility and reflectivity for safety-critical markings.

The built-in air compressor has a displacement of 0.45 m³/min, contributing to the machine’s steady and efficient operation. Weighing in at 2000 kg and measuring 3.5 × 1.6 × 2.5 meters, this machine is robust, dependable, and built for long-term service in the field.

Whether you’re striping a highway, an airport runway, or city roads, the Heavy-Duty Road Marking Machine delivers professional-grade results with less downtime, higher output, and superior accuracy.

Key Features & Specifications:

• Honda GX690 25HP gasoline engine

• Hydraulic drive system with variable forward/reverse speeds (0–22 km/h)

• Dual 150L oval paint tanks with hydraulic agitators

• Imported hydraulic plunger pump (16L/min)

• Automatic reciprocating cylinder for paint control

• Adjustable line width: 100–900 mm

• Adjustable line thickness: 0.2–0.4 mm

• Pneumatic glass bead dispenser with adjustable pressure

• 2 pneumatic spray guns + 1 manual gun

• Air compressor displacement: 0.45 m³/min

• Machine size: 3.5 × 1.6 × 2.5 m

• Total weight: 2000 kg
