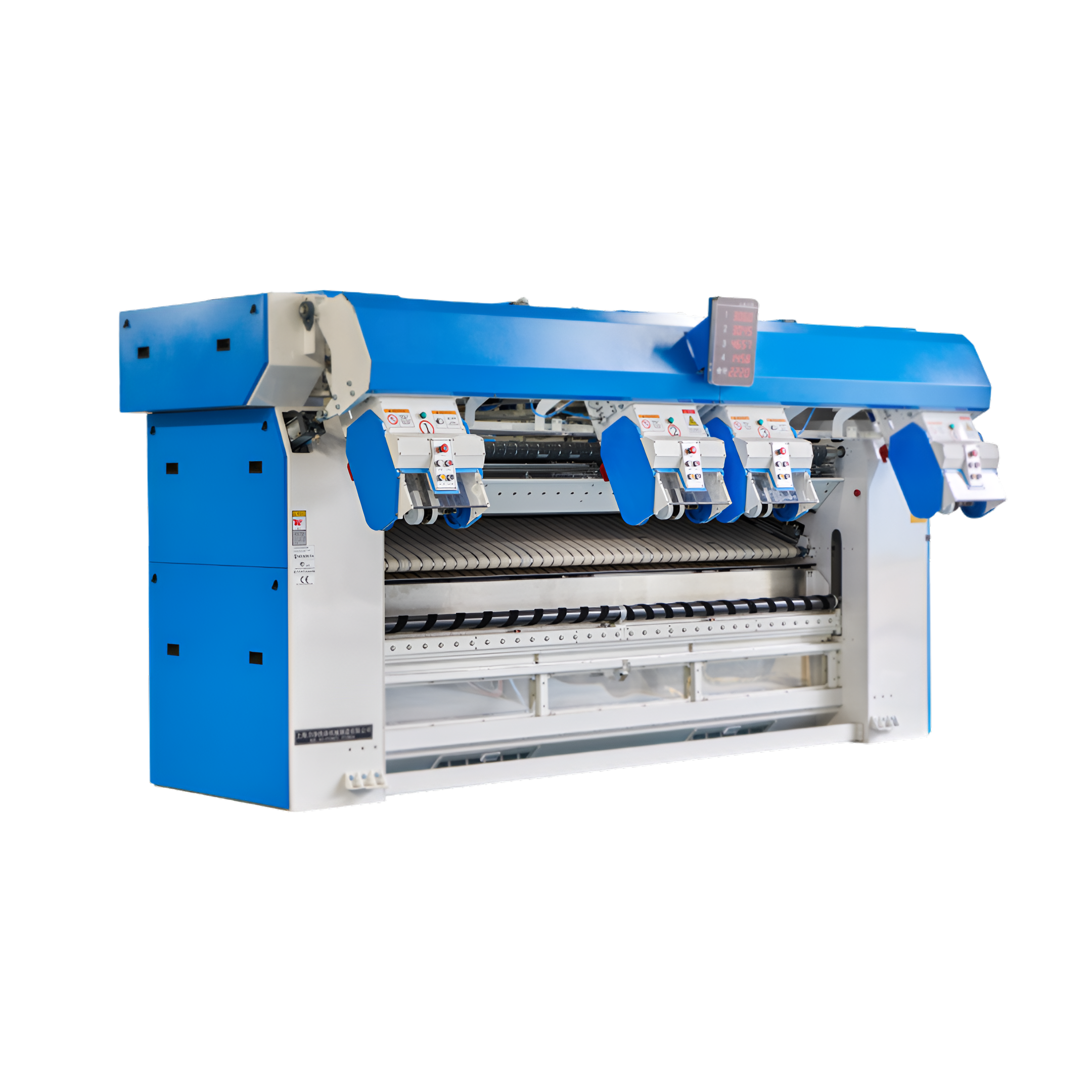

4 Stations Laundry Feeding Machine

Boost your laundry operation’s productivity with the 4 Stations Laundry Feeding Machine, a high-performance automatic feeder built for industrial-scale linen handling. Designed for seamless integration with high-speed ironing and folding lines, this advanced system brings together precision engineering, operator-friendly controls, and robust construction to meet the rigorous demands of commercial laundry environments.

This intelligent machine features four independent feeding stations, each equipped with dual clamp mechanisms and an advanced suction flap system. This ensures wrinkle-free and smooth placement of linens such as bed sheets, quilt covers, pillowcases, and meal cloths. The suction flap gently holds and stretches the fabric to minimize bunching or creasing before feeding it into the ironing line.

At the heart of its operation is a servo motor-driven manipulator, delivering accurate cloth measurement and placement consistency. The system also includes inverter-controlled speed settings, allowing flexible operation from 10 to 60 meters per minute to accommodate different fabric types and production speeds.

With a maximum capacity of 800 pieces per hour, this feeder significantly enhances throughput and labor efficiency. The 7-inch touchscreen interface provides centralized control for each station, offering programmable modes, real-time performance metrics, and quick adjustments for feeding parameters.

The expandable feeding platform enables both automatic and manual loading, making it versatile for processing linens of various sizes. Built with a durable frame, low air consumption (500 L/min at 0.6 Mpa), and a stable 380V power system, it ensures reliable performance in continuous, high-demand operations.

Ideal for hotels, hospitals, commercial laundries, and linen service providers, the 4 Stations Laundry Feeding Machine is a key asset for operations aiming to improve workflow efficiency, reduce manual handling, and deliver consistently high-quality results.

Key Features & Specifications:

• Model: SL-3500

• 4-station synchronous feeding with dual clamps

• Suction flap system for wrinkle-free feeding

• Servo motor-driven spreading for accurate placement

• Inverter-controlled speed (10–60 m/min)

• Capacity: Up to 800 pieces/hour

• 7-inch touchscreen interface with station-level stats

• Expandable feeding platform (auto/manual modes)

• Works with large linens: bed sheets, quilt covers, etc.

• Air Pressure: 0.6 Mpa | Air Consumption: 500 L/min

• Power: 380V

• Dimensions: 4634 × 2810 × 2377 mm
