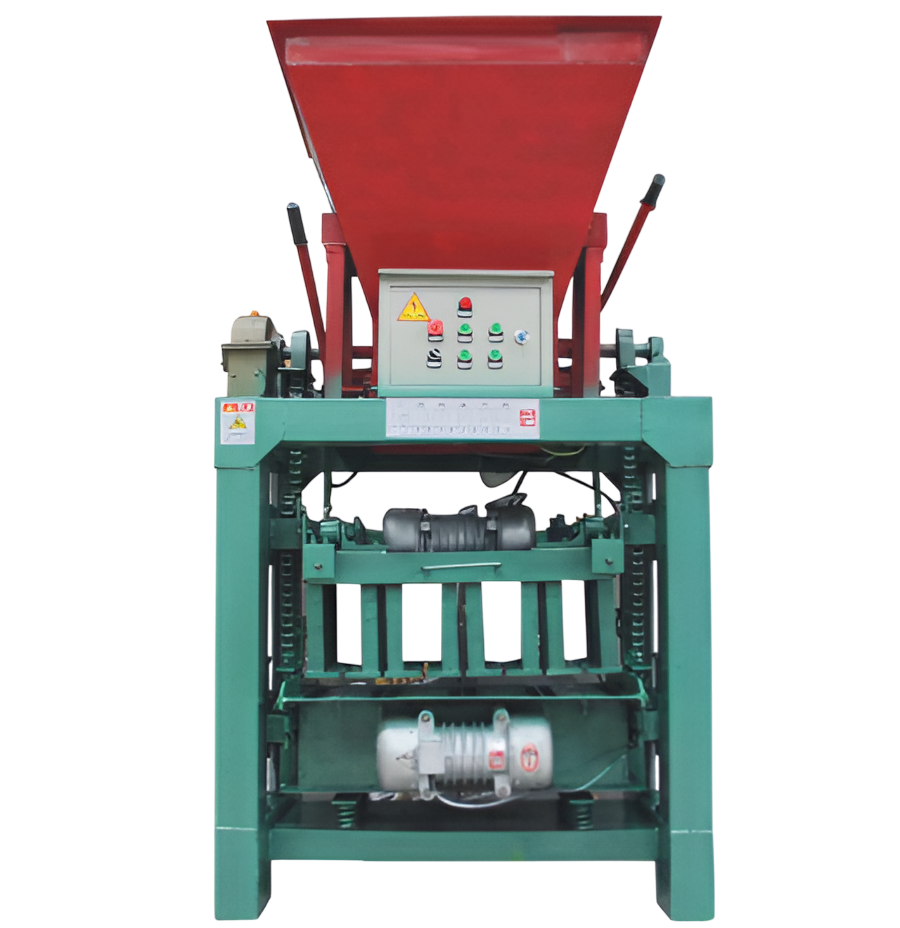

Block Molding Machine with Hopper

The Block Molding Machine with Hopper is a semi-automatic brick machine designed to deliver high-efficiency, reliable, and flexible brick production. Built for contractors, construction companies, and small to medium-scale manufacturers, this model combines robust performance with ease-of-use, making it ideal for both on-site and factory-based operations.

Equipped with a 7.5 kW motor and operating on 380V voltage, the 4-35B achieves a 35-second molding cycle, producing uniform, high-quality solid and hollow bricks with minimal labour. Its semi-automatic hopper system allows integration with a conveyor belt and mixer, creating a semi-automatic production line that significantly increases output while reducing manual effort.

Each unit includes one mold of your choice, customizable through our sales team, allowing for the production of a wide variety of cement products. The machine supports quick mold changes, enabling the manufacture of solid bricks, hollow blocks, paving stones, and other specialized products—all with consistent strength and precise dimensions.

The 4-35B with Hopper has a maximum production capacity of up to 20,000 standard bricks (240×53×115 mm) or 3,200 hollow blocks (390×190×190 mm) per shift. Its plate size of 850×550×30 mm and compact overall dimensions of 1500×1300×1800 mm, along with a machine weight of 1,100 kg, ensure stability during operation, easy setup, and long-lasting durability.

Requiring only 2–3 operators, this model is designed for low-maintenance operation, energy efficiency, and simple usability. The durable steel frame and semi-automatic hopper system provide reliable performance in demanding construction environments.

Whether used for on-site brick production, factory-based manufacturing, or small to medium construction projects, the 4-35B with Hopper delivers consistent, professional-grade results, reducing labor costs and maximizing productivity.

Key Features & Specifications:

• Model: 4-35B (Semi-Automatic with Hopper)

• Voltage: 380V

• Molding Cycle: 35 seconds

• Equipped Power: 7.5 kW

• Production Capacity: Solid bricks – 20,000 pcs | Hollow bricks – 3,200 pcs

• Plate Size: 850 × 550 × 30 mm

• Overall Size: 1500 × 1300 × 1800 mm

• Machine Weight: 1,100 kg

• Operators Required: 2–3

• Included Mold: One mold of your choice (customizable)

• Semi-automatic hopper system compatible with conveyor and mixer

• Multi-purpose design for producing solid bricks, hollow blocks, and paving stones

• Durable steel frame for long-term stability and low-maintenance operation
