Stainless Steel Drying Oven

The Stainless Steel Drying Oven is a high-efficiency hot air circulation system engineered for uniform, stable, and hygienic drying across a wide range of materials. Constructed entirely from food-grade SUS304 stainless steel, the unit offers exceptional durability, corrosion resistance, and easy cleaning. The inner chamber uses a mirror-polished stainless steel plate for improved hygiene and heat reflection, while the outer shell is precision-formed through machine-tool processing for a clean, smooth finish. A double-glazed viewing window allows operators to monitor the drying process without interrupting airflow or temperature stability.

This oven utilizes a forced-ventilation air circulation system to deliver consistent, evenly distributed hot air throughout the chamber. A powerful circulating motor drives air through the heater and along internal ducts, ensuring uniform heat transfer and reliable temperature accuracy. Used air is continuously recirculated, improving thermal efficiency and significantly reducing energy consumption. Even when the door is opened, the system quickly restores the set temperature, maintaining stable drying conditions at all times.

The intelligent control panel provides precise electronic management with automated temperature and humidity control. Operators can rely on safe, consistent drying without constant supervision, reducing labour while ensuring product quality. The drying process maintains nutrients, preserves natural colour, and ensures clean, contamination-free results. Low noise, stable operation, and simple maintenance make it suitable for small to large-scale operations.

This versatile drying oven is ideal for food, fruits, vegetables, meat, seafood, nuts, spices, herbs, flowers, tea leaves, pet food, fungi, agricultural goods, and industrial materials. Its strong adaptability and high efficiency reduce operational costs while increasing productivity, making it a valuable solution for food processing plants, agricultural facilities, seafood suppliers, and light-industry manufacturers.

Key Features & Specifications:

• Constructed from food-grade SUS304 stainless steel

• Forced-ventilation hot air circulation system

• Intelligent temperature and humidity control

• Double-glazed observation windows

• Mirror stainless steel inner chamber

• High thermal efficiency, low energy consumption

• Safe, stable, low-noise operation

• Trays and pallets can be placed on each layer

• Suitable for drying food, spices, seafood, herbs, flowers, vegetables, tea leaves, nuts, and industrial materials

• Easy installation and long service life

• Adjustable air distribution board for uniform drying

• Temperature self-control box included

Model Details:

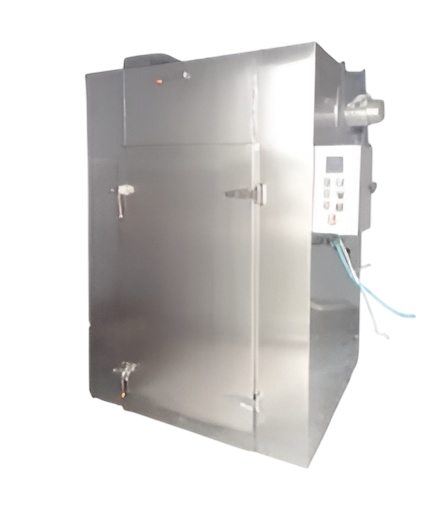

KR-C-24:
Evaporation area 7.1 m², Effective volume 1.3 m³, Drying volume 60 kg/batch, Heat sink area 15 m², Steam consumption 15 kg/h, Electric heating power 9 kW, Fan air volume 3450 m³/h, Fan power 0.45 kW, Dimensions 141 × 120 × 216 cm, Weight 480 kg, Matching baking car 1, Matching drying tray 24, Temperature control box Yes

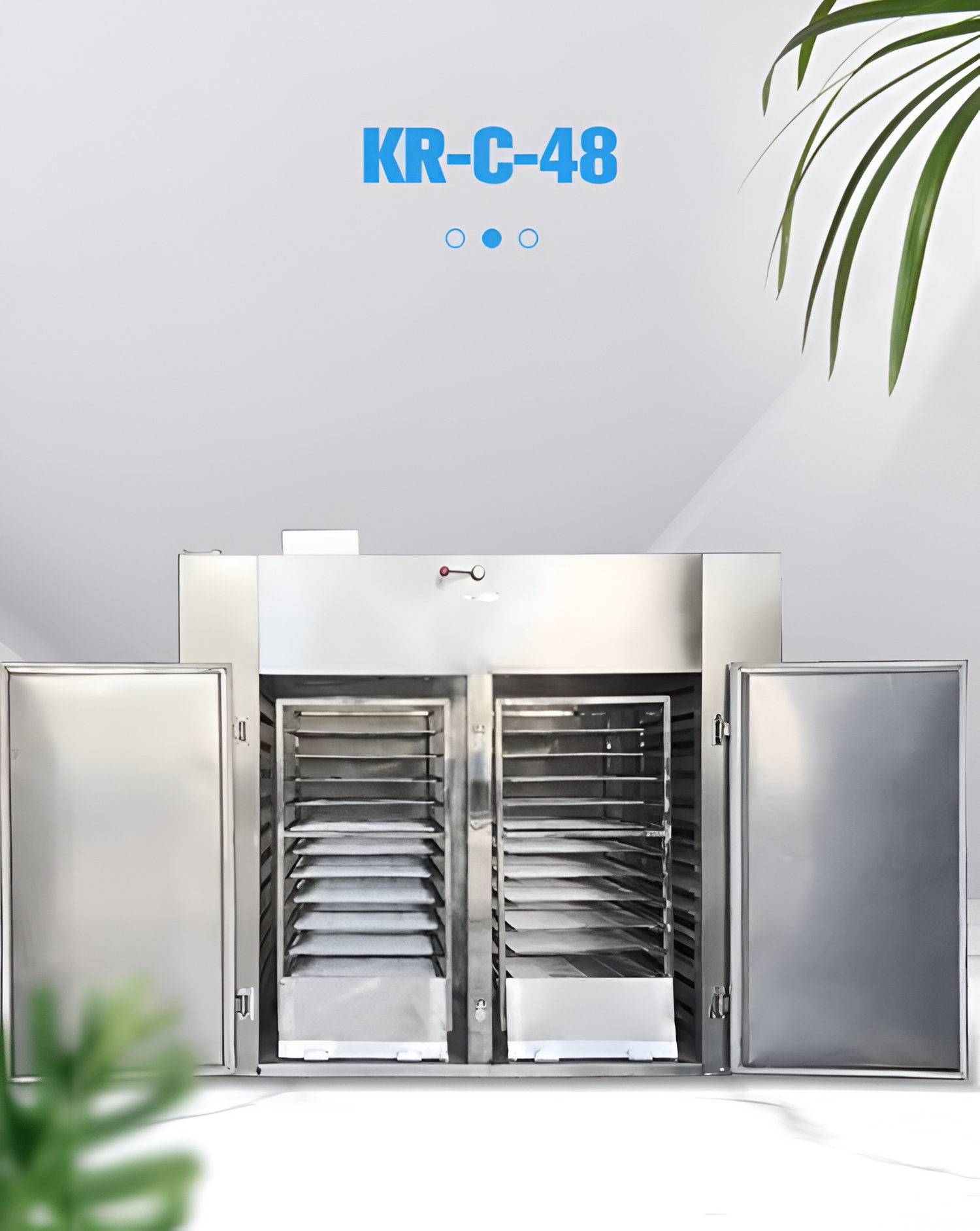

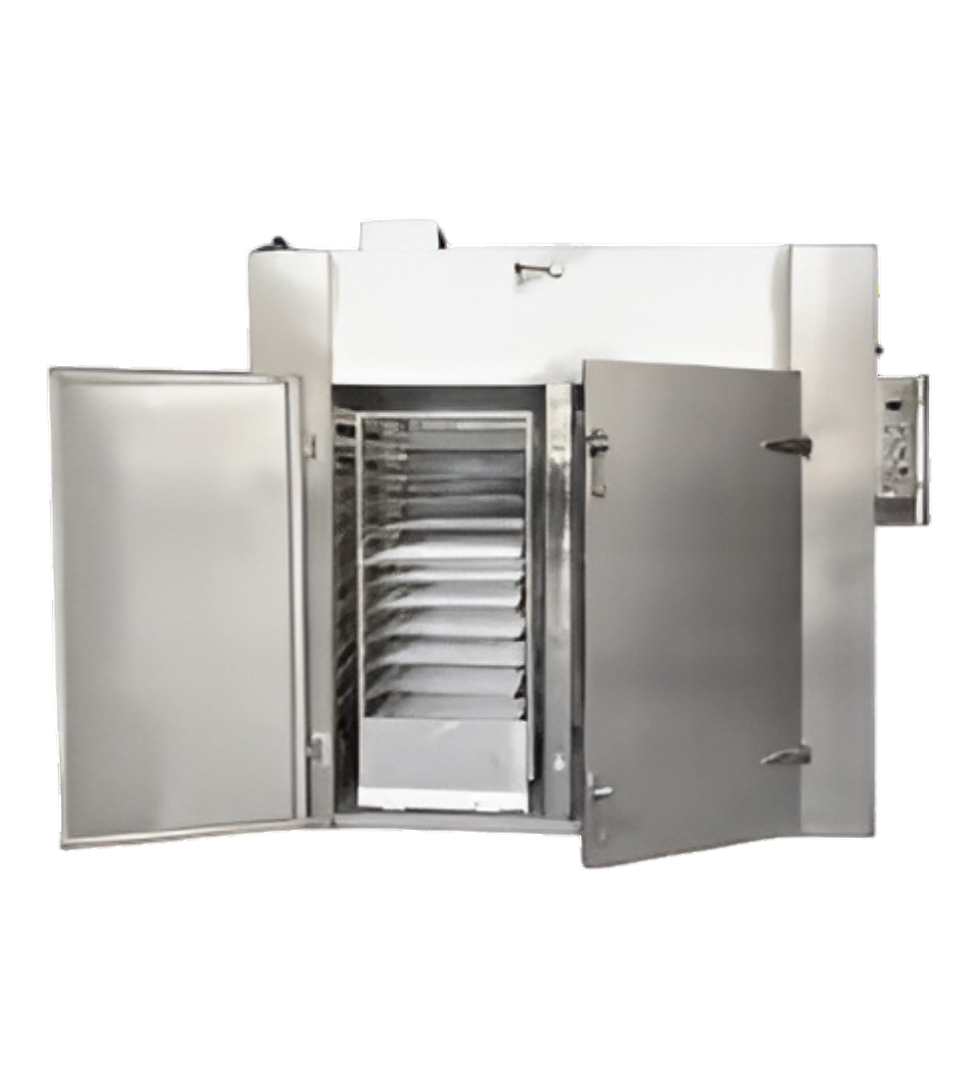

KR-C-48:
Evaporation area 14.1 m², Effective volume 2.6 m³, Drying volume 120 kg/batch, Heat sink area 23 m², Steam consumption 20 kg/h, Electric heating power 15 kW, Fan air volume 3450 m³/h, Fan power 0.45 kW, Dimensions 225 × 120 × 216 cm, Weight 1080 kg, Matching baking car 2, Matching drying tray 48, Temperature control box Yes

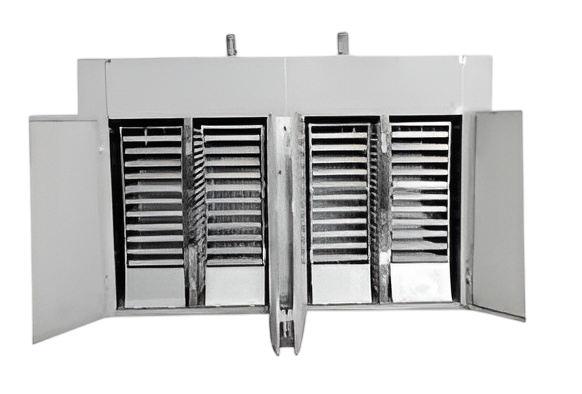

KR-C-192:
Evaporation area 56.5 m², Effective volume 10.3 m³, Drying volume 480 kg/batch, Heat sink area 96 m², Steam consumption 80 kg/h, Electric heating power 48 kW, Fan air volume 13800 m³/h, Fan power 0.45 × 6 kW, Dimensions 436 × 216 × 216 cm, Weight 2400 kg, Matching baking car 8, Matching drying tray 192, Temperature control box Yes
