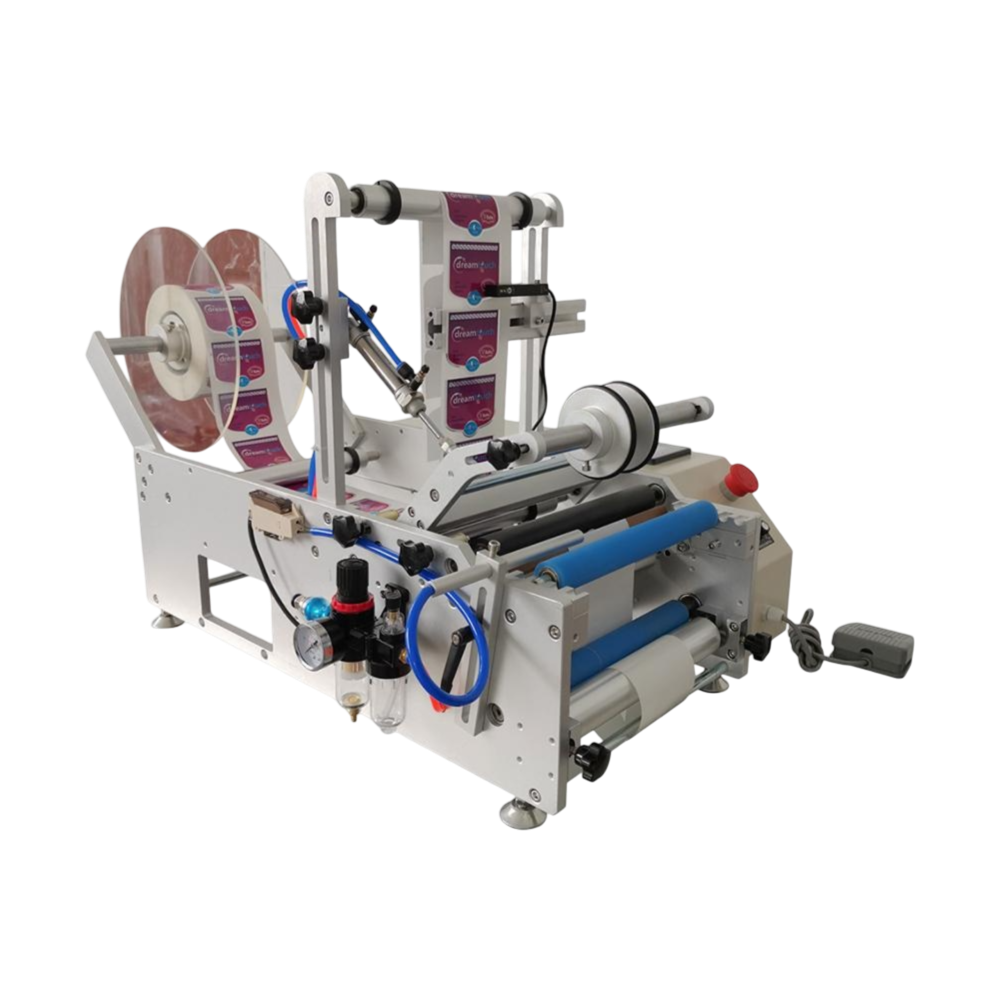

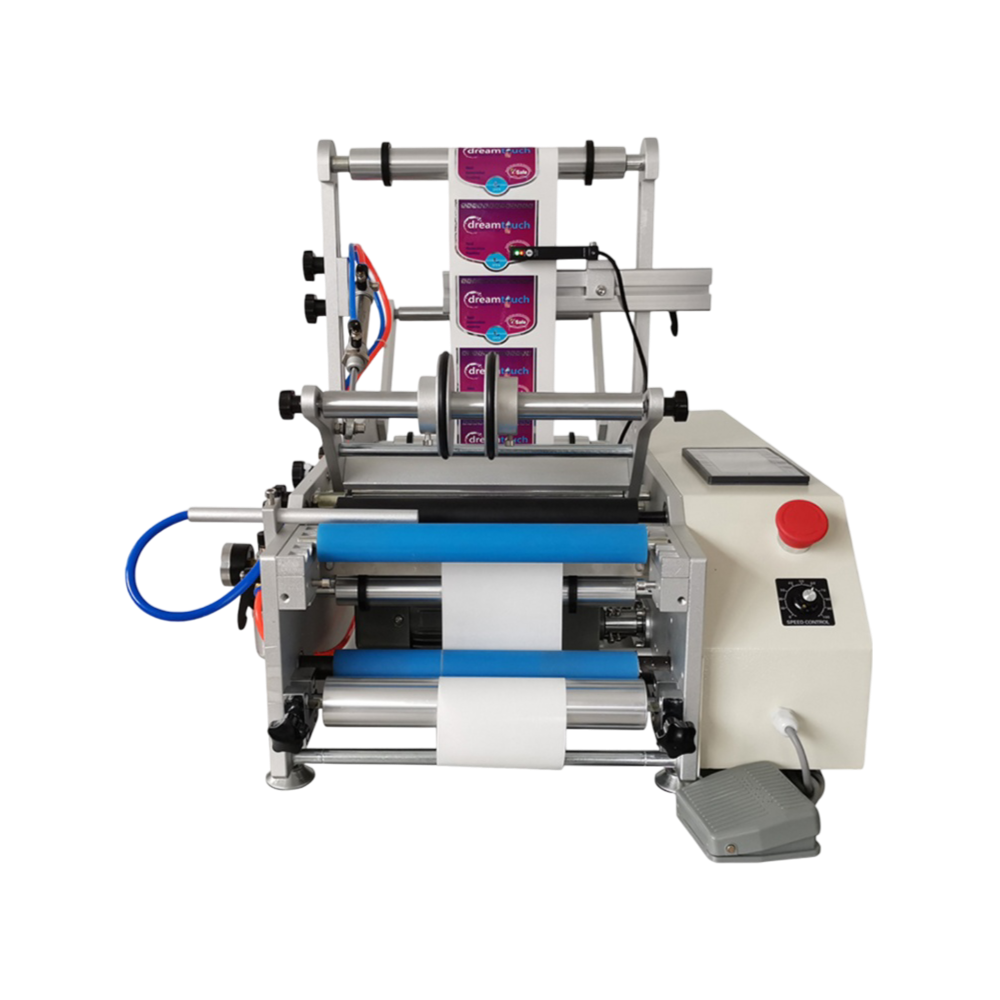

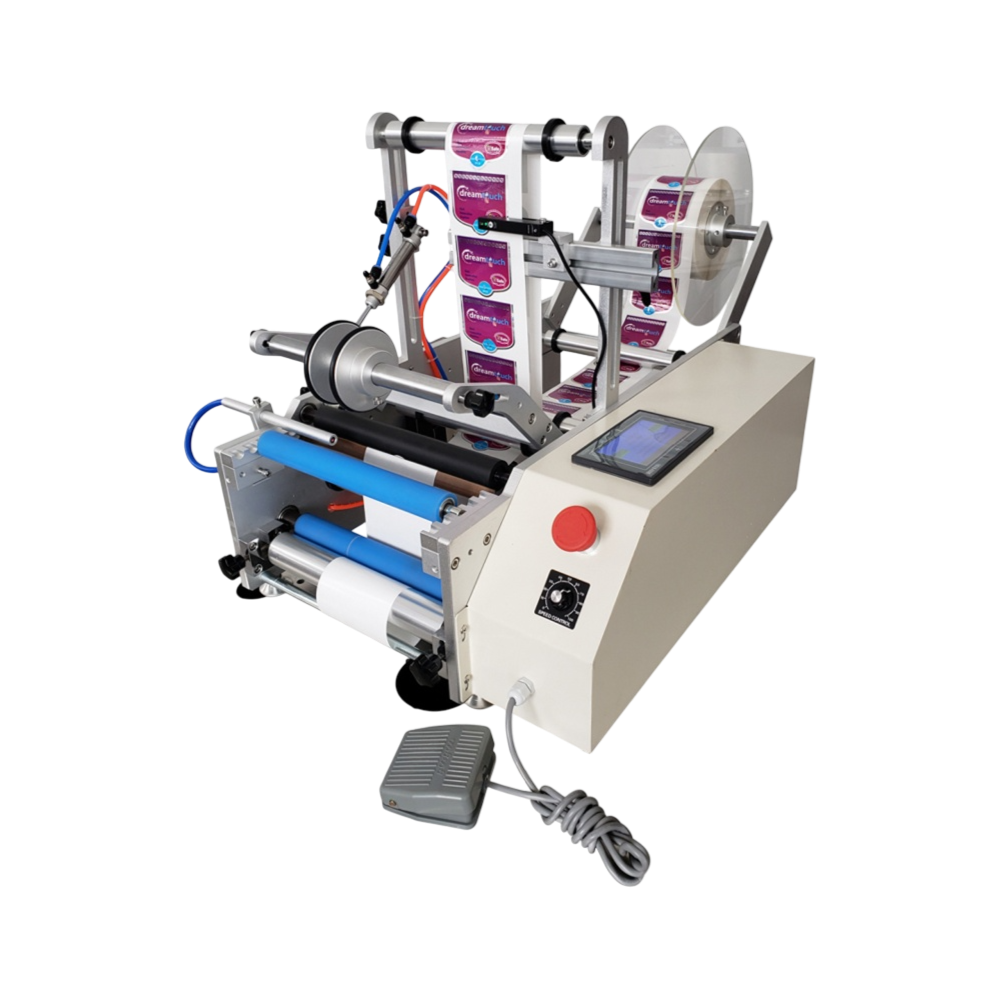

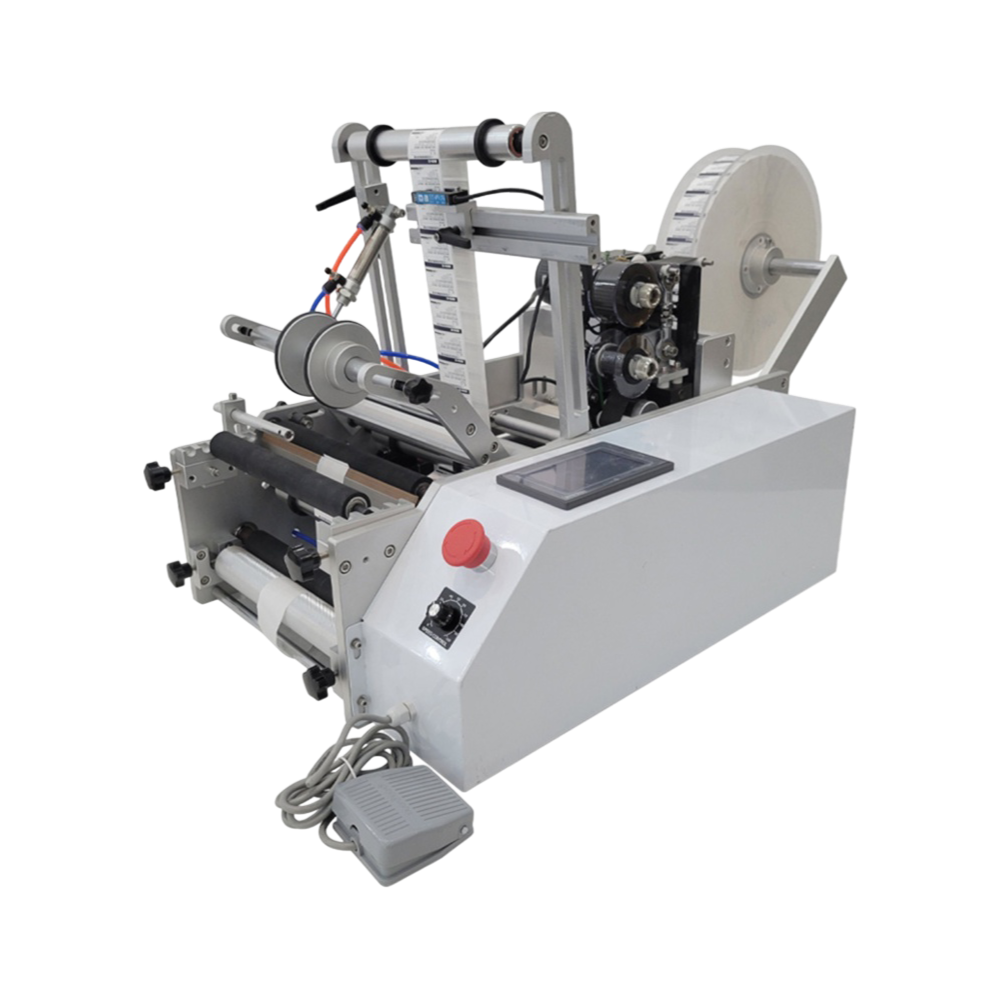

Semi-Automatic Round Bottle Labeller

The Semi-Automatic Round Bottle Labeller is a high-precision and efficient solution designed for labelling a wide range of cylindrical containers. Suitable for various bottle materials including glass, plastic, and metal, this machine ensures accurate and consistent label application, making it ideal for small to medium-scale production environments.

This advanced semi-automatic labelling machine supports multiple labelling formats, including full wrap-around labelling, half-cycle labelling, and front and back labelling on round bottles. The spacing between front and back labels can be freely adjusted, allowing for flexible customisation based on product design and branding requirements.

Equipped with an intelligent control system, the machine simplifies operation and enhances productivity. Operators only need to place and remove bottles, while the labelling process is completed automatically through a pneumatic control system. This reduces manual intervention, improves efficiency, and ensures consistent results across production batches.

The machine is designed for stability and precision, delivering accurate label placement with minimal deviation. Its adjustable configuration accommodates a wide range of bottle sizes and label dimensions, making it suitable for diverse industries such as food and beverage, cosmetics, pharmaceuticals, and chemical packaging.

With its compact structure, durable build, and user-friendly design, this labeller is ideal for production facilities looking to improve packaging efficiency without investing in fully automated systems. It offers a practical balance of performance, flexibility, and cost-effectiveness for growing businesses.

Key Features & Specifications:

• Suitable for cylindrical bottles of various materials
• Supports full wrap, half wrap, and front & back labelling
• Adjustable front and back label spacing
• Semi-automatic operation with pneumatic control system
• Labelling speed: 15–30 bottles per minute
• Labelling accuracy: ±1 mm
• Label size range: 20–230 mm (L) × 20–300 mm (W)
• Suitable bottle diameter: 10–150 mm
• Suitable bottle height: up to 260 mm
• Label roll inner diameter: 75 mm
• Maximum label roll outer diameter: 250 mm
• Power supply: AC 220V 50Hz / 110V 60Hz
• Power consumption: 250W
• Machine dimensions: 54 × 95 × 53 cm
• Net weight: 42.5 kg
