Hydraulic Crawler Drilling Rig

The Hydraulic Crawler Drilling Rig is a high-performance full hydraulic solution designed for diamond wireline coring operations in mineral exploration and engineering drilling applications. Built with a compact crawler chassis and a highly integrated hydraulic system, this drilling rig delivers excellent drilling speed, stable operation, and reliable performance in demanding geological conditions. Its professional-grade design ensures safe operation, easy control, and consistent drilling quality across a wide range of projects.

Engineered primarily for solid mineral deposit drilling, the rig is also widely used in engineering geology, shallow oil and natural gas exploration, groundwater drilling, tunnel ventilation, drainage projects, and dam grouting operations. The ability to operate at drilling angles between 45° and 90° allows flexible positioning in complex terrains and confined work environments, making it suitable for both exploration and construction-based drilling tasks.

The rig adopts a full hydraulic drive system using an axial piston pump combined with auxiliary gear pumps to ensure smooth power transmission and efficient hydraulic output. The power head features a mechanical two-speed stepless speed regulation design, enabling precise adjustment of rotary speed and torque to match different rock formations. A lateral translation mechanism on the power head simplifies drill rod lifting and lowering, improving operational efficiency and safety.

With an oblique piston motor providing high power density in a compact structure, the rig achieves strong drilling capability without increasing overall machine size. The crawler system offers excellent stability, strong climbing ability, and smooth mobility on uneven terrain. Its durable construction, low failure rate, and simple maintenance significantly improve drilling efficiency and long-term operating reliability.

Key Features & Specifications:

• Full hydraulic crawler-mounted core drilling rig

• Designed for diamond wireline coring drilling processes

• Axial piston pump with auxiliary gear pump hydraulic system

• High-torque power head with two-speed stepless regulation

• Drilling angle range from 45° to 90°

• Lateral power head translation for easy drill rod handling

• Compact, highly integrated structure with low maintenance needs

• Stable crawler chassis with strong climbing capability

• Suitable for mineral exploration and engineering drilling projects

Model Details:

• JY-600: Operating Weight 4500 kg, Transport Dimensions 4500 × 1900 × 2650 mm, Working Dimensions 4500 × 2500 × 6100 mm, Drilling Angle 45°–90°, Drilling Depth BTW/BQ 650 m, Drilling Depth NTW/NO 600 m, Drilling Depth HTW/HO 400 m, Drill Head Lift Force 240 kN, Drill Head Feed Force 120 kN, Maximum Torque 1800 N·m, Rotary Speed 0–1400 rpm, Feed Stroke 1800 mm, Mast Slide Stroke 800 mm, Mechanical Winch Capacity 1.5 kN, Winching Speed 110 m/min, Mud Pump BW100 or BW160 Optional, Mud Pump Pressure 20 kN, Crawler Type Rubber or 5 t Steel Optional, Maximum Climbing Angle 25°, Crawler Walking Speed 2–3 km/h, Engine Yuchai 4-cylinder 91 kW, Cooling System Water Cooling

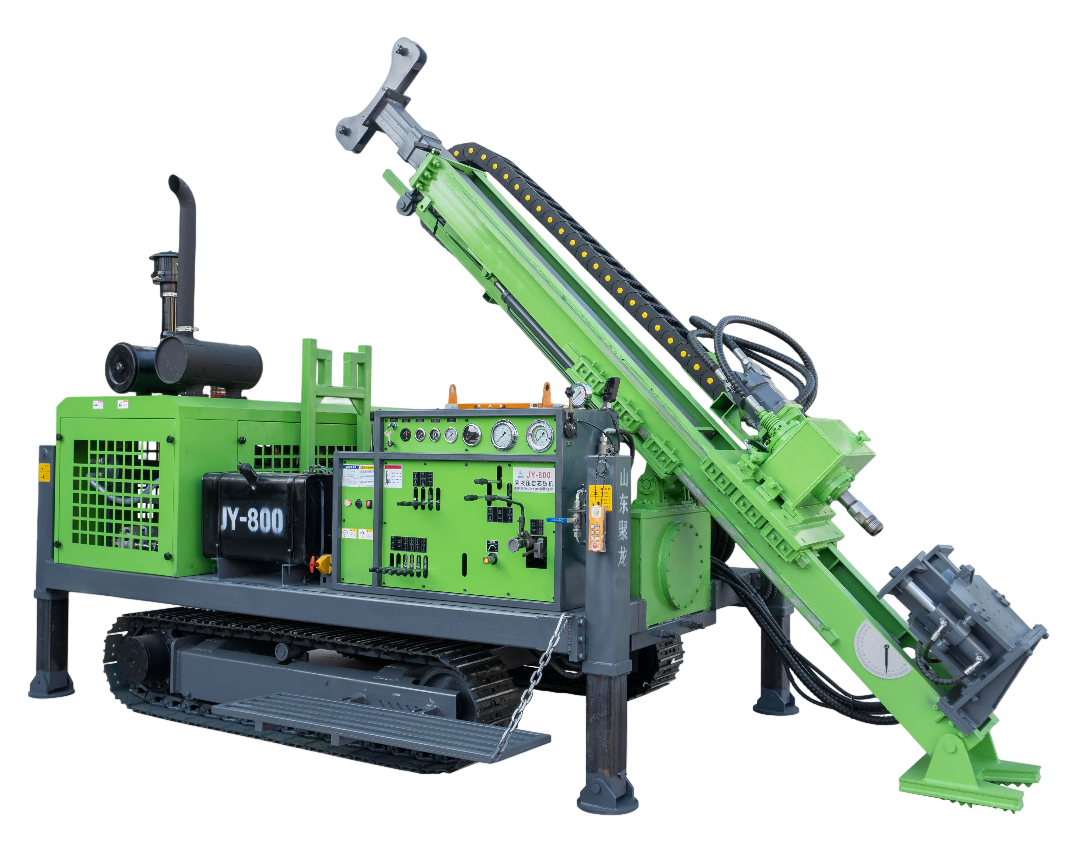

• JY-800:Operating Weight 6500 kg, Transport Dimensions 4400 × 2200 × 2800 mm, Working Dimensions 4000 × 2700 × 6500 mm, Drilling Angle 45°–90°, Drilling Depth BTW/BQ 1000 m, Drilling Depth NTW/NO 800 m, Drilling Depth HTW/HO 600 m, Drill Head Lift Force 300 kN, Drill Head Feed Force 150 kN, Maximum Torque 2000 N·m, Rotary Speed 0–1400 rpm, Feed Stroke 1800 mm, Mast Slide Stroke 1200 mm, Mechanical Winch Capacity 1.5 kN, Winching Speed 110 m/min, Mud Pump BW100 or BW160 Optional, Mud Pump Pressure 20 kN, Crawler Type Rubber or 6 t Steel Optional, Maximum Climbing Angle 25°, Crawler Walking Speed 2–3 km/h, Engine Yuchai 6-cylinder 92 kW, Cooling System Water and Air Cooling
