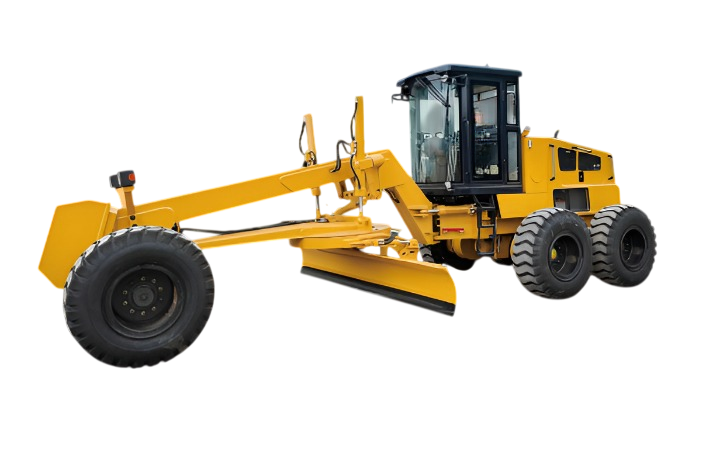

Heavy Duty Motor Grader

The Heavy Duty Motor Grader is engineered to meet the demanding requirements of modern construction, infrastructure development, and road maintenance projects. Powered by a high-performance diesel engine delivering 125 kW at 2200 rpm, it provides dependable power, smooth operation, and excellent fuel efficiency. This diesel-driven system ensures consistent productivity during long working hours, even in demanding conditions. Its rugged construction and precision engineering make it a reliable solution for grading, levelling, and earthmoving applications.

With a total operating weight of 15,000 kg and carefully balanced axle loads of 4,150 kg at the front and 10,750 kg at the rear, this motor grader offers superior stability and traction on uneven terrain. The extended 5,347 mm wheelbase, combined with front and rear wheel tracks of 2,150 mm and 2,255 mm respectively, enhances balance, machine control, and operator confidence. Forward speeds of up to 40.4 km/h and reverse speeds of 25.7 km/h allow efficient relocation across job sites while maintaining operational safety.

The advanced hydraulic system operates at 18 MPa, enabling fast and precise blade response for improved grading accuracy and smoother workflow. Featuring a blade length of 3,660 mm with a 610 mm chord height, the grader ensures effective material distribution and surface finishing. A minimum turning radius of 7,500 mm provides excellent manoeuvrability in confined spaces, while the six forward and three reverse gears allow adaptability across varying terrain and working conditions.

Ideal for large-scale construction, road building, and maintenance operations, this diesel-powered motor grader combines strength, durability, and ease of use. Designed for long service life, low maintenance requirements, and reliable performance, it is a cost-effective investment for professional construction and infrastructure teams.

Key Features & Specifications:

• Engine: Diesel

• Engine Rated Power: 125 kW @ 2200 rpm

• Overall Dimensions: 830.5 × 269.5 × 342 cm

• Total Weight: 15,000 kg

• Front Axle Load: 4,150 kg; Rear Axle Load: 10,750 kg

• Front Wheel Track: 2,150 mm; Rear Wheel Track: 2,255 mm

• Wheelbase: 5,347 mm

• Speed Gear: 6 Forward / 3 Reverse

• Forward Speed: 40.4 km/h; Reverse Speed: 25.7 km/h

• Minimum Turning Radius: 7,500 mm

• Blade Length & Chord Height: 3,660 mm & 610 mm

• Hydraulic System Pressure: 18 MPa

• Ideal for construction, road grading, and earthmoving
