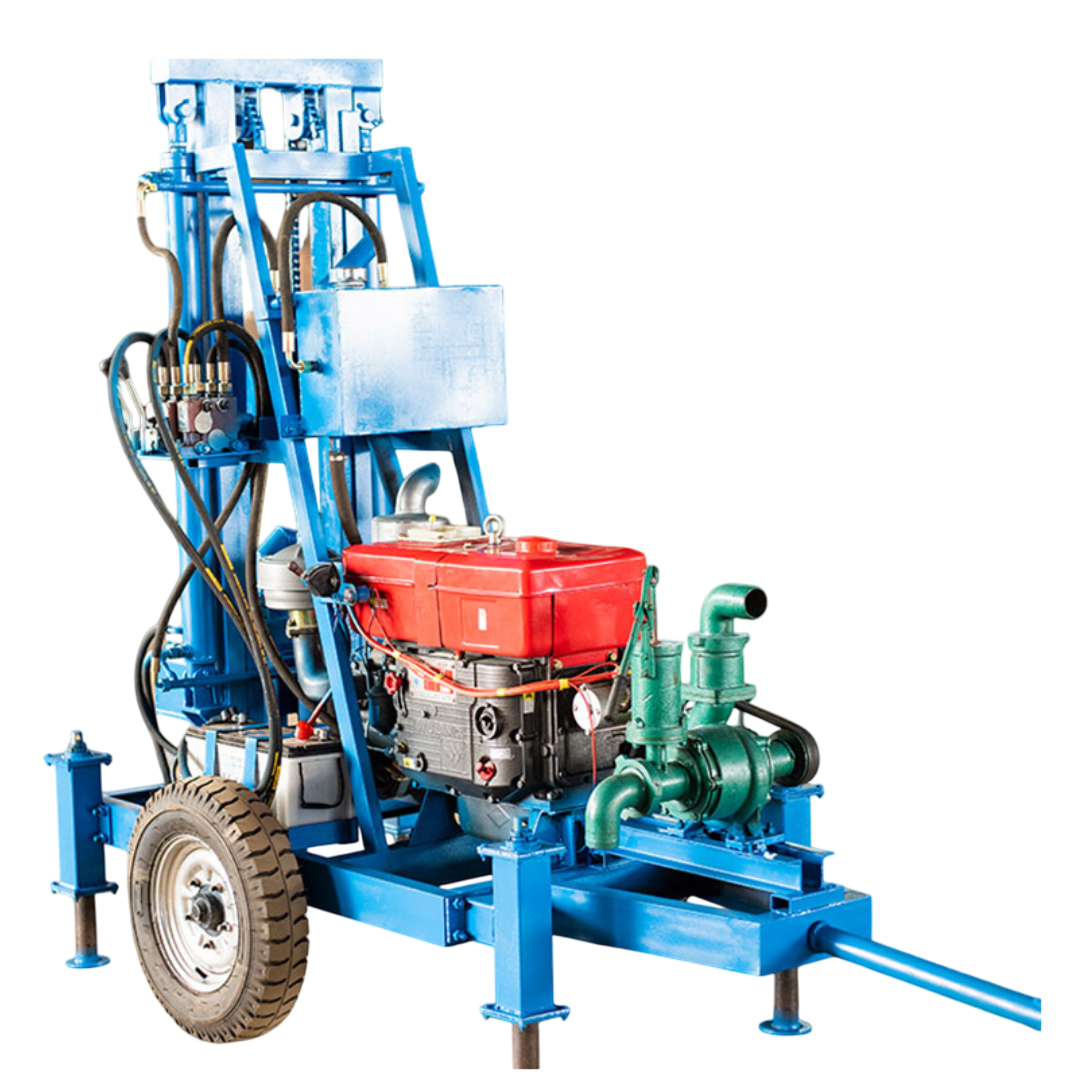

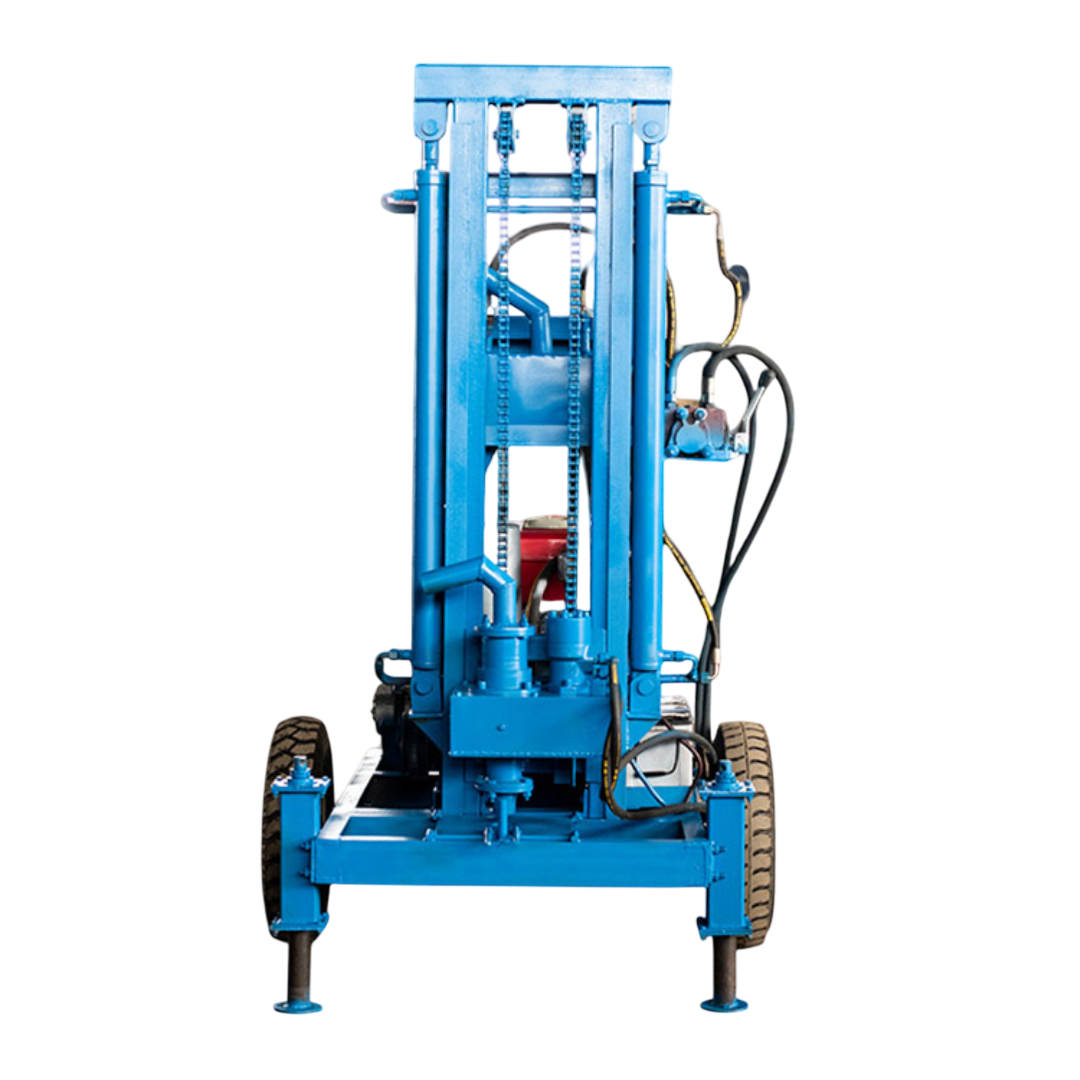

Diesel Drilling Rig

The Diesel Drilling Rig is a high-performance, heavy-duty rotary drilling machine designed for commercial, industrial, and field applications. This industrial drilling machine is powered by a 22hp diesel engine, delivering stable, reliable performance for deep hole drilling up to 120 meters. Its compact, portable frame and automatic drill pipe release make it easy to operate in tight construction sites, remote geological locations, or on uneven terrain.

Engineered as a versatile heavy-duty drilling rig, it is ideal for geological surveys, mining exploration, water well construction, and foundation drilling projects. As advanced geological drilling equipment, it ensures precise and consistent drilling results, even in challenging soil or rock conditions. The rig features a rotary cutting drill method for efficiency and precision, while the step motor spindle guarantees consistent cutting performance. Its strong lifting force, up to 1000kg, along with included drill rods and alloy bits, provides a comprehensive solution for professional drilling tasks.

This construction drilling rig and mining drill rig is built for portability and convenience, making it a reliable portable drilling machine for field engineers, contractors, and drilling professionals. Whether performing deep hole drilling for water wells, soil testing, or mining surveys, this diesel drilling rig combines rugged durability, efficiency, and flexibility.

With robust materials and precision engineering, the Diesel Drilling Rig offers long-term reliability and stable performance in all operating environments. Its versatile design allows it to serve as a construction drilling rig, water well drilling rig, mining drill rig, and essential geological drilling equipment for a wide range of industrial and commercial projects.

Key Features & Specifications:

• Heavy-duty 22hp diesel engine for stable drilling power

• Maximum drilling depth: 120m | Drilling diameter: Φ100mm–Φ240mm

• Automatic lever release and manual lever change for drill pipe replacement

• Rotary cutting drilling method for precision and efficiency

• Step motor spindle for reliable cutting performance

• Lifting force up to 1000kg

• Includes 40m drill rods and two alloy drill bits (100mm & 240mm)

• Model DJSL-240DHY: Drill Pipe Length 1.5m, Rig Weight 200kg, Drill Pipe Diameter Φ51mm, Standby Size 140 × 75 × 220 cm, Working Size 140 × 75 × 220 cm, Lift Height 2.5m, Engine 22hp diesel, Accessories: Main engine, tools, 40m drill rod, 2 alloy drill bits (100mm & 240mm), English manual
