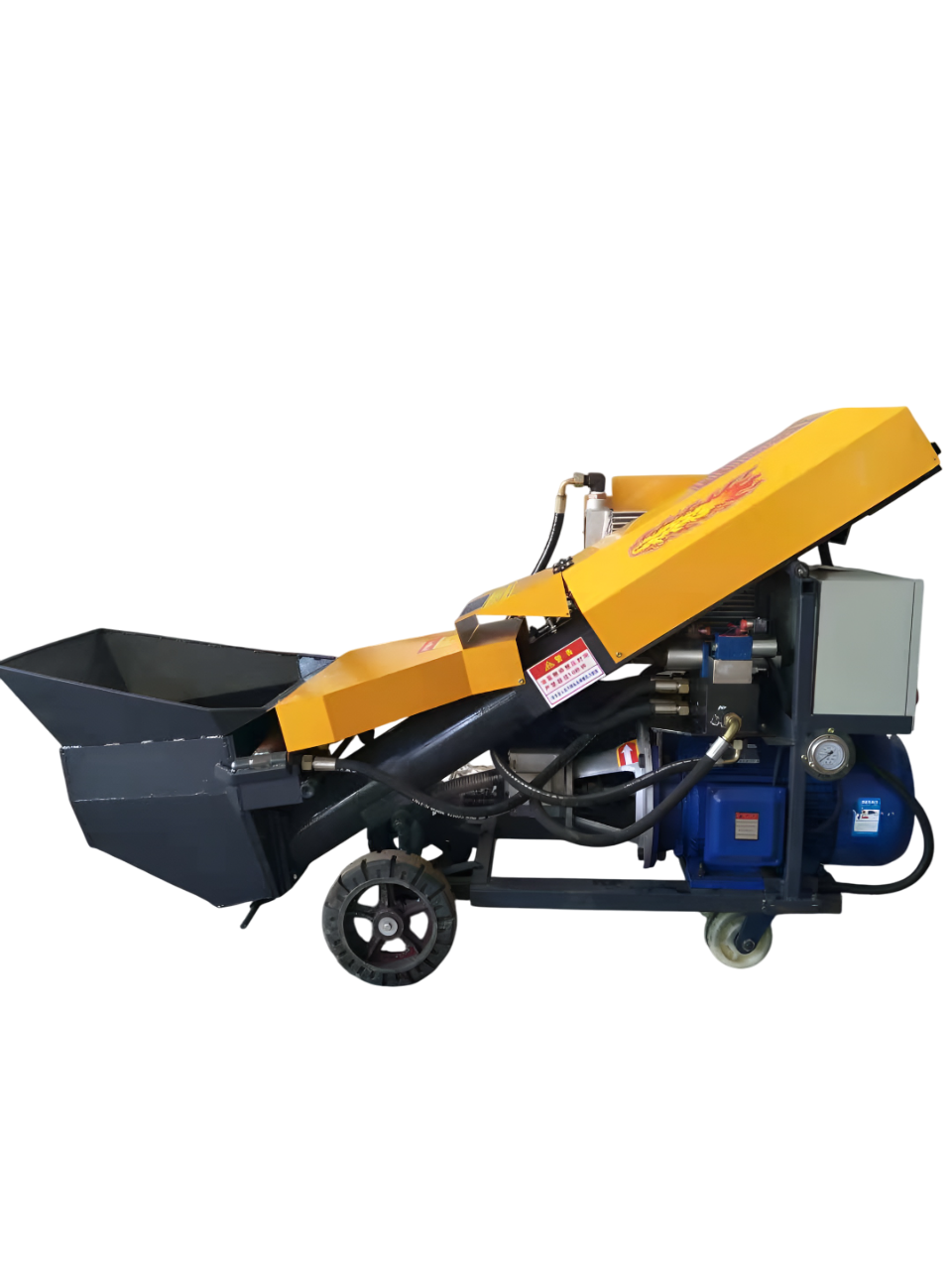

Concrete Delivery Pump

This concrete delivery pump is designed for efficient, continuous transport of fine stone concrete, mortar, and slurry materials to high-demand work areas. Built with an inclined bucket structure and a powerful hydraulic delivery system, it ensures smooth, stable, and uninterrupted material flow—making it ideal for large-scale construction, structural reinforcement, and specialized grouting applications.

The pump operates using hydraulic slurry transmission combined with double-cylinder reciprocating action. This design increases discharge strength, improves pressure performance, and minimizes blockages during delivery. A vibration mesh filtration system further enhances reliability by screening coarse particles and maintaining consistent material quality before pumping. With strong output capacity and high pressure, the machine reduces labour intensity and significantly improves on-site efficiency.

Capable of conveying materials vertically up to 15 meters and horizontally up to 60 meters, this pump is suitable for a wide variety of construction projects. It reliably handles particle sizes ranging from 5–30 mm, making it compatible with fine stone concrete, mortar mixtures, secondary structural column infill, and pressure grouting tasks.

This machine is widely used in high-rise building mortar transport, structural column pouring, reservoir maintenance, hydropower engineering, port reinforcement, foundation stabilization, anchor grouting, tunnel construction, subway works, mining backfill, and other demanding environments where consistent concrete delivery is essential.

With a conveying capacity of up to 8 cubic meters per hour, the pump provides powerful performance while maintaining flexible mobility on site. Its compact footprint and manageable dimensions allow it to be deployed in narrow areas or complex construction zones. Designed for durability and long-term operation, the machine offers a dependable solution for teams needing stable and efficient delivery of fine stone concrete and mortar across various project types.

Key Features & Specifications:

• Hydraulic slurry delivery with double-cylinder reciprocating system

• Vibration mesh filtration for stable and consistent material flow

• Suitable for mortar, slurry, and fine stone concrete

• Model: HG-9

• Maximum particle size: 5–30 mm

• Motor power: 15 kW

• Vertical conveying distance: 15 m

• Horizontal conveying distance: 60 m

• Max conveying capacity: 8 m³/hour

• Overall machine dimensions: 190 × 67 × 120 cm

• Machine weight: 430 kg

• High pressure and large displacement for demanding projects

• Reduces labor and material waste

• Flexible mobility for tight or complex work environments

• Ideal for high-rise delivery, structural column filling, pressure grouting, reservoir work, hydropower, ports, tunnels, subways, and mine backfill operations
