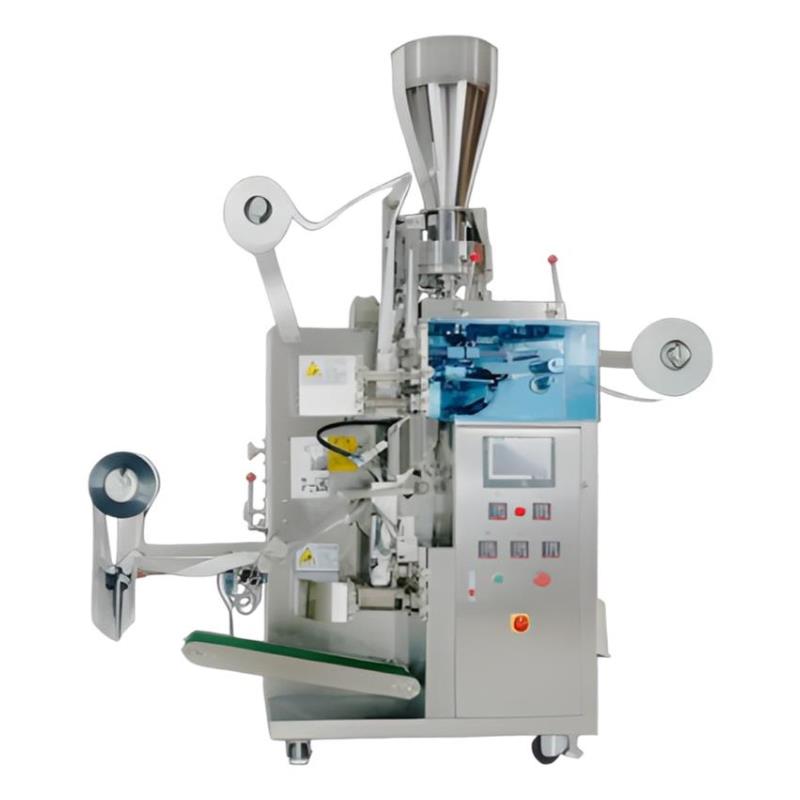

Automatic Tea Bag Packing Machine

The Automatic Tea Bag Packing Machine is a high-efficiency packaging solution designed for the non-returnable packaging of both inner and outer tea bags. It is ideal for small particulate materials such as tea, herbal tea, health tea, and grass-root type products. Built for precision, hygiene, and consistent performance, this machine is well-suited for commercial tea producers and contract packaging operations.

The machine features a dual-bag system that simultaneously forms, fills, and seals the inner filter bag and the outer protective bag. The inner and outer film drawing is controlled by a stepper motor, ensuring stable bag length, smooth operation, and accurate positioning. A PID temperature controller maintains precise sealing temperatures, resulting in consistent and secure three-side sealing performance.

The entire operation is managed by a PLC control system with a user-friendly human-machine interface display. This intelligent control system enhances operational accuracy, simplifies adjustments, and ensures product hygiene throughout the packaging process. The machine is constructed from high-quality stainless steel, meeting industry standards for cleanliness and durability in food processing environments.

With a packing speed of 30–40 bags per minute and a measuring range of 3–10 grams (16–26 ml), the machine delivers efficient and accurate portion control. It supports filter paper, thread, composite membrane, and labels as packing materials, making it versatile for a wide range of tea packaging applications.

Compact yet robust, the machine measures 175 × 74 × 195 cm and weighs 550 kg, providing stable performance while maintaining a manageable footprint for production facilities. This tea bag packing machine offers reliability, efficiency, and precision, making it an excellent investment for businesses seeking automated and professional packaging solutions.

Key Features & Specifications:

• Suitable for tea, herbal tea, health tea, and granular products

• Packing Speed: 30–40 bags per minute

• Measuring Range: 3–10 g (16–26 ml)

• Inner Bag Size:

  • Length: 50–70 mm

  • Width: 45–80 mm

• Outer Bag Size:

  • Length: 80–120 mm

  • Width: 75–95 mm

• Sealing Type: Three-side sealing

• Control System: PLC with human-machine interface

• Temperature Control: PID adjustable

• Material: Stainless steel construction

• Power Supply: AC220V ~ 50Hz

• Total Power: 3.7 kW

• Gas Source Requirement: ≥0.4 m³/min

• Includes Ribbon Cutter & Cursor

• Dimensions (L×W×H): 175 × 74 × 195 cm

• Net Weight: 550 kg
