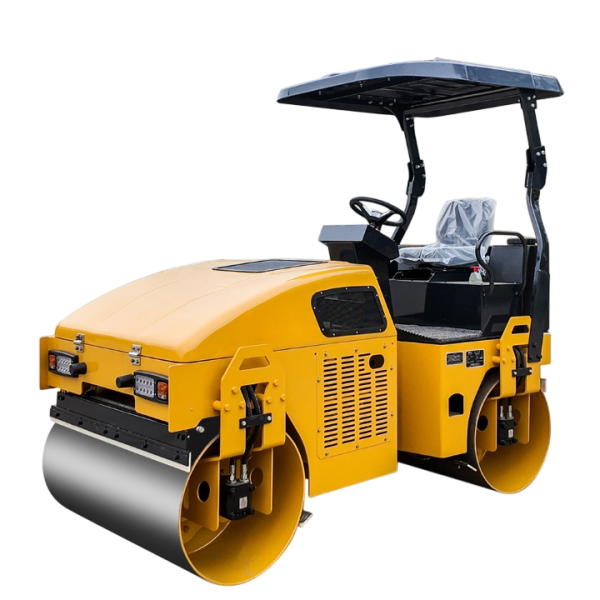

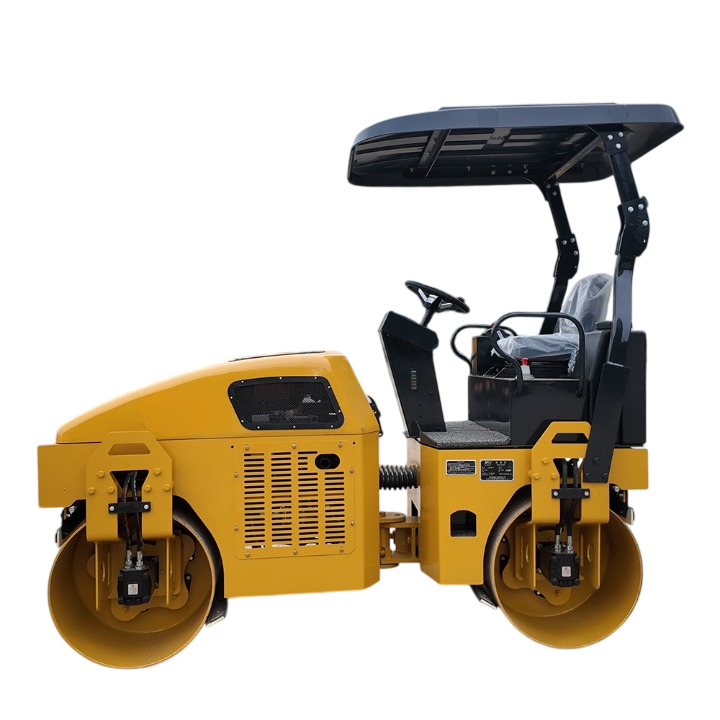

Compact Road Roller

Description

The Compact Road Roller is a versatile and efficient compaction solution designed for small to medium-scale construction, road maintenance, and municipal infrastructure projects. Powered by a dependable diesel engine, this roller delivers consistent performance and reliable vibration output, making it ideal for compacting asphalt, gravel, sand, and mixed soils. Its balanced design and optimized static linear load ensure uniform compaction results while minimizing surface damage.

With an operating mass of 3000 kg, the machine offers excellent manoeuvrability without sacrificing compaction efficiency. The well-engineered wheelbase and compact overall dimensions allow it to work effectively in narrow spaces such as sidewalks, parking lots, residential roads, and urban construction sites. A steering angle of 26° provides smooth handling and precise directional control, improving operator confidence and productivity.

The roller features a high-frequency vibration system with strong excitation force, ensuring deep and even compaction across different material layers. Its vibration drum width is optimized to deliver consistent coverage, while the durable drum structure enhances longevity under continuous operation. Adjustable travel speed enables operators to adapt to varying surface conditions and project requirements with ease.

Equipped with a generously sized water tank, the roller prevents material adhesion to the drum during asphalt compaction, ensuring smooth finishes and uninterrupted workflow. The efficient power output and strong climbing ability of up to 30% make it suitable for sloped surfaces and uneven terrain.

Designed with durability, ease of operation, and low maintenance in mind, the Compact Road Roller offers long service life and cost-effective performance. Its ergonomic layout, reliable diesel power, and stable vibration system make it an excellent choice for contractors seeking dependable compaction equipment for road construction, repair work, and general earthmoving applications.

Key Features & Specifications:

• Diesel engine with efficient power output

• Engine power: 26.5 kW

• Operating mass: 3000 kg

• Static linear load: 136 N/cm

• Excitation force: 2 × 30 kN

• Vibration frequency: 50 Hz

• Drum width: 1250 mm

• Drum diameter: 700 mm

• Travel speed: 0–12 km/h

• Steering angle: 26°

• Wheelbase: 2010 mm

• Water tank capacity: 200 L

• Maximum climbing ability: 30%

• Overall dimensions: 290 × 140 × 252 cm
