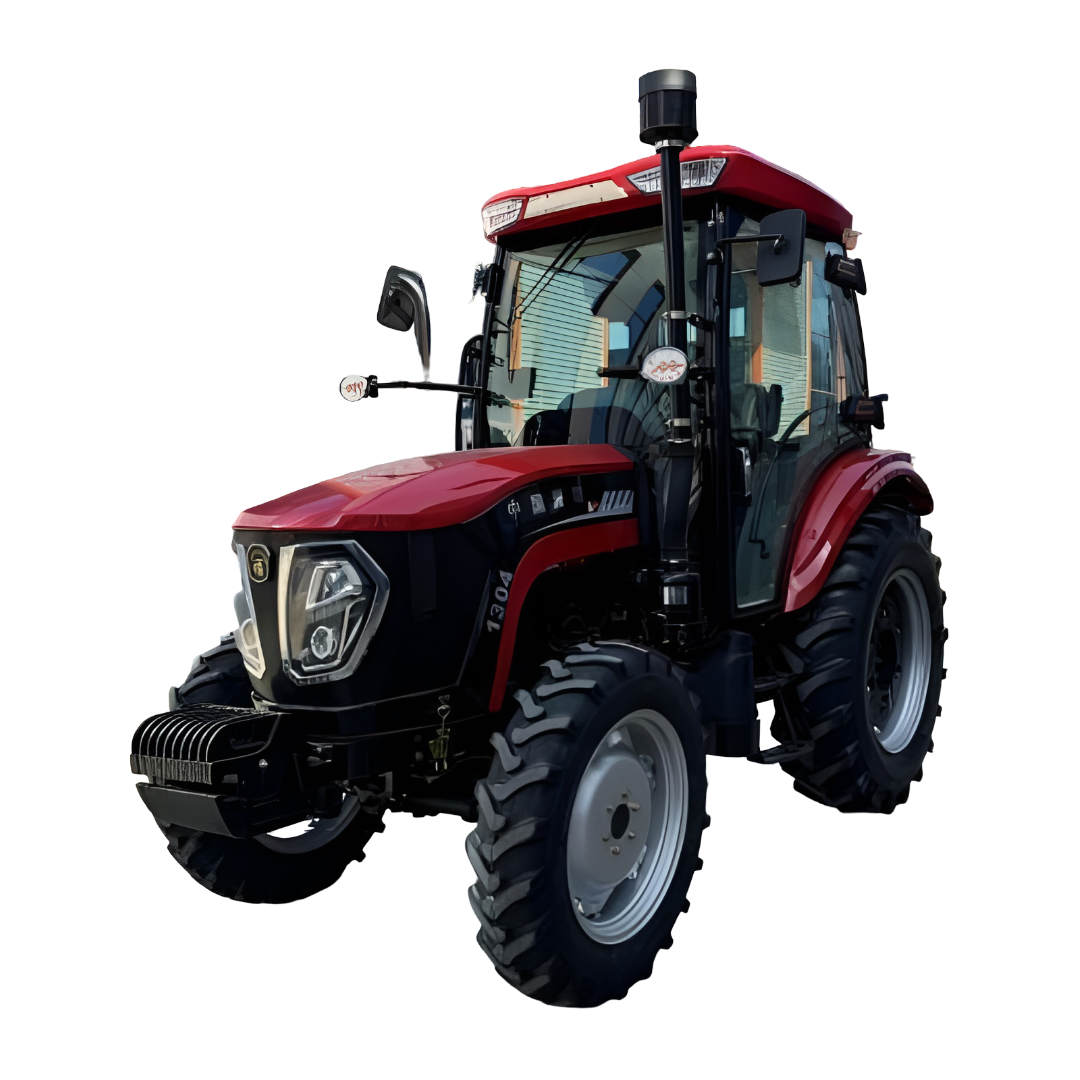

90HP 4WD Farm Tractor

The 90HP 4WD Farm Tractor is a powerful and versatile agricultural machine engineered for demanding field operations and heavy-duty farm applications. Equipped with a 4-cylinder, water-cooled engine and electric starter system, this tractor delivers reliable 66.15 kW of power, ensuring consistent performance across ploughing, planting, hauling, and general farm work.

Designed with a 4-wheel drive system, it provides superior traction and stability in various terrains, including muddy, uneven, and sloped farmland. The 12 forward and 12 reverse synchronized shuttle gears allow smooth shifting and efficient directional changes, improving productivity during repetitive field tasks. A mechanical rear axle differential lock enhances traction when operating in challenging soil conditions.

The tractor features a two-disc, double-stage dry clutch for dependable power transmission and long service life. Its hydraulic steering system ensures responsive and precise handling, while the adjustable wheel tread and 2100 mm wheelbase contribute to operational stability. With a minimum ground clearance of 390 mm and an average turning radius of 4750 mm, the tractor balances maneuverability with strong field performance.

Operator comfort is prioritized with a fully enclosed cabin equipped with air conditioning and a combined instrument panel for clear monitoring of machine functions. The 80-litre fuel tank supports extended working hours, reducing downtime for refuelling.

The rear three-point hitch suspension system and dual hydraulic output groups with quick couplings enable compatibility with a wide range of agricultural implements. The PTO shaft offers standard speeds of 540 and 1000 r/min with 8 splines, providing flexibility for various attachments.

Built with a structural weight of 3100 kg and fitted with front and rear counterweights, this tractor offers durability, balance, and dependable power for modern farming operations.

Key Features & Specifications:

• Engine: 4 Cylinder, Water Cooled, Electric Start

• Engine Power: 66.15 kW (90HP)

• Drive Type: 4WD (Four-Wheel Drive)

• Gearbox: 12 Forward + 12 Reverse, Reversible Synchronized

• Clutch: Two-Disc, Double-Stage, Dry

• Differential Lock: Mechanical Rear Axle

• Steering: Hydraulic Steering System

• PTO Shaft: 8 Splines

• PTO Speed: 540 / 1000 r/min

• Hydraulic Outputs: Two Groups with Quick Couplings

• Suspension: Three-Point Hitch

• Tyres: Rear 14.9–30″, Front 9.5–24″

• Fuel Tank Capacity: 80 L

• Cabin: Enclosed Cabin with Air Conditioning

• Structural Weight: 3100 kg

• Counterweights: Rear 180 kg, Front 144 kg

• Dimensions (L×W×H): 395 × 178 × 271 cm

• Wheelbase: 2100 mm

• Ground Clearance: 390 mm

• Turning Radius: 4750 mm
